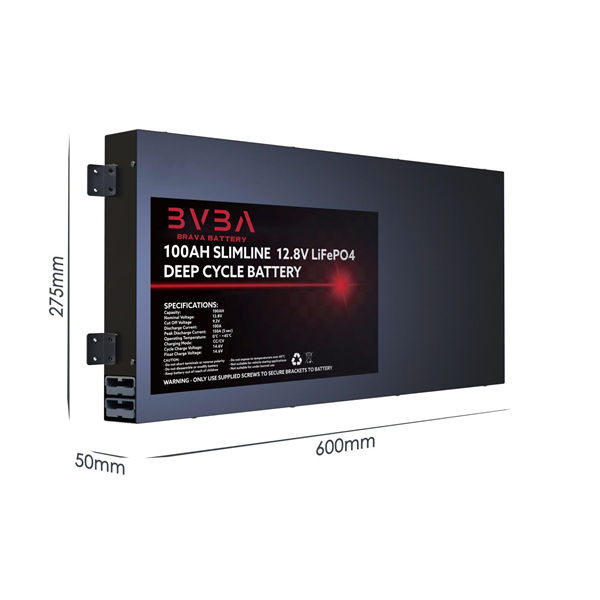

LFT12-100 slim LiFePO4

LFT12-100 SLIMLINE LiFePO4 battery with BT

Table of Contents

YOU NEED BIG CAPACITY BUT HAVE LIMITED   SPACE?

Introducing 12 Volt Brava’s latest release the Brava   LFT12-100 slimline LiFePO4 battery.

Designed to fit where other batteries cant, the Brava   LFT12-100 is the ideal solution to mount behind seats, in canopies or behind   draws.

This behemoth packs a whopping 100AH of capacity into a   slim 55mm chassis and weighs in at only 13KG

brava lifepo4 battery
brava lifepo4 battery

WHY LITHIUM/LifePo4 battery?

Lithium batteries provide far greater useable amp hours than   their lead-acid counterparts. Unlike lead-acid lithium batteries can be   deeply discharged without affecting the cycle life. This means you can use   the  for longer before having to recharge. In comparison, AGM   batteries are generally recommended to only be discharged to 50% of   their capacity to maximize their cycle life whereas lithium can generally be   discharged to 80-90% of the capacity.

COST

LFT12-100 slim LiFePO4
LFT12-100 slim LiFePO4

While the initial investment of a lithium battery is more than  lead-acid the service/cycle life of lithium is far superior. Typically   lead-acid batteries have a service life of 300-900 cycles whereas   Lithium has a cycle life of  2000+ cycles at a much higher   discharge. That being said you would expect to replace your lead acid battery   2 or 3 times in comparison to replacing 1 Lithium battery.

Twin 120A   Anderson Style Connectors

The Brava   LFT12-100 is equipped with twin 120A Anderson Style Connectors. Both of   these can be used for high current charging and discharging. This also   allows the battery to be easily removed and relocated if being used in   different applications.

**Please note that the batteries are equipped with grey plugs & not   blue as seen in the picture.**
Included   Mounting Brackets

The Brava   LFT12-100 comes complete with an assortment of straight and right-angle   mounting brackets and screws to allow for easy fitment. Unlike other   solutions on the market, our slimline batteries have existing mounting points   so there is no need to drill out rivets to install the brackets.

The slimline configuration allows for easy fitment behind   seats. Volkswagen Amarok is shown below.
Our 200AH will also fit behind in the same location

Longer life

Lithium batteries are rated for 2,000   – 5,000 cycles and much more if used carefully, giving you several times the   life expectancy of standard lead-acid batteries

Powerful

Lithium batteries allow you to pull far more amps out of the same size   battery systems

Light-weight

Lithium batteries are less than half the weight of the equivalent lead-acid   battery.

Fast recharge

Lithium batteries charge more efficiently and don’t require as many stages   during charging. Therefore, they will charge faster, and hold more of the   energy from solar panels and other charging devices.

LiFePO4 battery vs Lead acid battery  Capacities

Why Choose lithium battery
Why Choose lithium battery

100Ah Lithium   = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium = 320Ah AGM
300Ah Lithium = 480Ah AGM

(Based on   standard depth of discharge for both Lithium (80%) and AGM (50%).

 The 12 Volt  Difference

Deep cycle batteries may appear similar on the outside but   don’t be fooled, there are key differences between low-quality offerings   often found on online auction sites and 12 Volt Direct’s premium quality   offerings.

Prismatic Cells

The Brava LFT12-100 is four high-quality 3.2   volt 100AH prismatic cells connected in series. Prismatic cells provide   superior performance than their cheaper cylindrical cell counterparts as   they are more stable and shock-resistant.



phone app for monitor battery
phone app for monitor battery

Built-in Battery Management System (BMS)

The Brava LFT12-100 is equipped with an advanced internal   Battery Management System. This monitors and optimizes each Prismatic   cell within the battery. It will protect the battery pack from over   charge, over discharge, over temperature & short circuit. The BMS helps   to ensure safe and accurate operation of the battery.

Built-in Volt Meter
The Brava LFT12-100 features an Built-in   Bluetooth to allow you to easily see your battery level of charge at any point   in time. The screen is backlit to allow for ease of use whether it’s day or   night.

Fits where other batteries cant

Suited for custom installations our Brava LFT12-100 can fit   where others simply can’t. This image shows a custom install behind the rear   quarter panel of a 200 Series Toyota Landcruiser. Credit to Authorised   Reseller Advanced Installation Service for this awesome   install.

Twin 120A Anderson Style Connectors

The Brava LFT12-100 is equipped with twin 120A  Connectors. Both of these can be used for high current charging   and discharging. This also allows the battery to be easily removed and   relocated if being used in different applications.

**Please note that the batteries are equipped with grey plugs & not   blue as seen in the picture.**
Included Mounting Brackets

The Brava LFT12-100 comes complete with an assortment of   straight and right-angle mounting brackets and screws to allow for easy   fitment. Unlike other solutions on the market, our slimline batteries have   existing mounting points so there is no need to drill out rivets to install   the brackets.

Limline Prismatic Cells LiFePO4 LFT12-100 battery SPECIFICATIONS



NOMINAL VOLTAGE 12.8V
CAPACITY 100AH
MAX SERIES/ PARALLEL CONFIG 4S OR  4P
NORMAL CHARGE VOLTAGE 14.6V
FLOAT VOLTAGE 14.6V
DISCHARGE CUTOFF VOLTAGE 10.0V
CHARGE TEMP 0-45°C (60°C max     discharging)
DISCHARGE TEMP 0-45°C (60°C max discharging)
SELF-DISCHARGE Less than 3% per month
INITIAL IMPEDANCE 220mΩ
WEIGHT 13KG
MAX CHARGE CURRENT 50A
MAX DISCHARGE CURRENT 100A
PULSE CURRENT 200A (5 Seconds)
                      DIMENSIONS 600 X 55 X 260mm
                        CYCLE LIFE 2000 CYCLES @ 85% DOD
TERMINALS 2 X 120A CONNECTORS



THE 12 VOLT BRAVA GUARANTEE

 LiFePO4 battery cell
LiFePO4 battery cell

All Brava  products are manufactured using the highest quality   materials. We are so confident that we stand behind this product with a   comprehensive 3 Year  Warranty.

Constructed using the latest lithium   iron phosphate cells (LiFePO4). The battery has an inbuilt Battery Management   System (BMS) and at just 13kg, the unique slimline shape makes it the perfect   battery for installations where space is a premium. Slide it behind a seat,   bolt it to a wall or at the back of a cupboard. The Slimline battery provides   up to 100A of continuous discharge or charge and can be stacked in parallel   to increase amp hour storage capacity. The strong aluminium outer enclosure   delivers a safe, lightweight and powerful unit which is the perfect building   block for next generation battery systems.

If space is of prime importance on your next adventure, our   new Blade LiFePO4 lithium battery is for you. Weighing only 13kg   and measuring just 620mm x 250mm x 55mm, you’ll save ample room in   your luggage and still have a safe, reliable and steady power source for all   your travelling needs.

Our LiFePO4 battery is supplied fully protected by a   sophisticated, specially-designed   Battery Management System that constantly monitors every cell to ensure the   battery is always optimised for best performance. Unlike gel or   lead-acid batteries, LiFePO4s are safer, lighter, and more powerful,   with a long service and shelf-life.

Brava Battery,  headquartered in DongGuan, China,   introduced its new Slimline Lithium battery 100Ah, 200Ah. With battery   technology leadership and a decade in lithium battery innovation across   multiple sectors, Brava Battery is well equipped to address RV Dealer and   Marine Dealers with the latest energy storage solutions and battery   technology for the Off-grid application of RV and Marine energy storage   applications.

3 Year Warranty
3 Year Warranty

“Slimline Lithium (LiFePO4 ) batteries 100Ah feature a   proprietary high current Battery Management System (BMS) that   manages safety and the lightning-fast charge performance,” Brava Battery.   “The internal cell cradle, control board, and solid-state relays of the BMS,   plus the IP65-rated battery case, make it reliable and durable for Caravans,   Camper trailers, Motor homes, 4WD, Marine Vessels, Trucks applications.”

A free battery monitoring app for Slimline Lithium battery   100Ah is available for iOS devices on the Apple App Store and Android devices   on Google Play. The Brava Battery app provides Rv enthusiasts real-time   Bluetooth access to; battery state of charge, voltage, operating current,   temperature, and diagnostic details.

“While lithium batteries are more expensive than lead-acid   batteries to purchase initially, they deliver a lower total ownership cost,”   says Tom. “It takes two lead-acid batteries to equal the usable capacity of   one Slimline Lithium battery 100Ah, which lasts the same life as up to ten   sets of the same lead-acid batteries. Rv enthusiast doubles their initial   cost of a lead-acid battery to get a lithium battery, however, they repeat   the purchase up to ten times over replacing old batteries to get the same   usable capacity of just one top-quality Slimline Lithium battery 100Ah. That   is why Brava Battery is the best choice—it just makes better financial   sense.”
