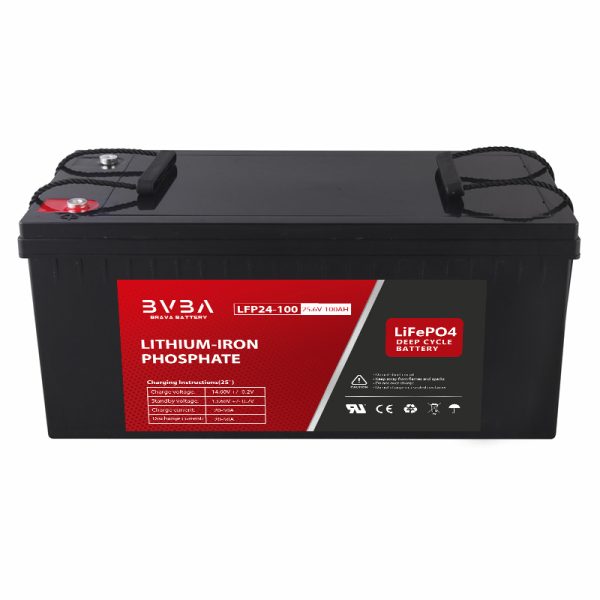

LFP24-100 25.6V100Ah Prismatic Cell LiFePO4 Battery

Prismatic Cell LiFePO4 battery General Features & benefits.

  • Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.
  • Lighter Weight: About 40% of the weight of a comparable lead acid battery.
  • Higher Power: Delivers twice power of lead acid battery
  • Wider Temperature Range: -20 ºC ~60 ºC
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact,overcharging or short circuit situation.
  • Maintenance free
  • Internal cell balancing
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature

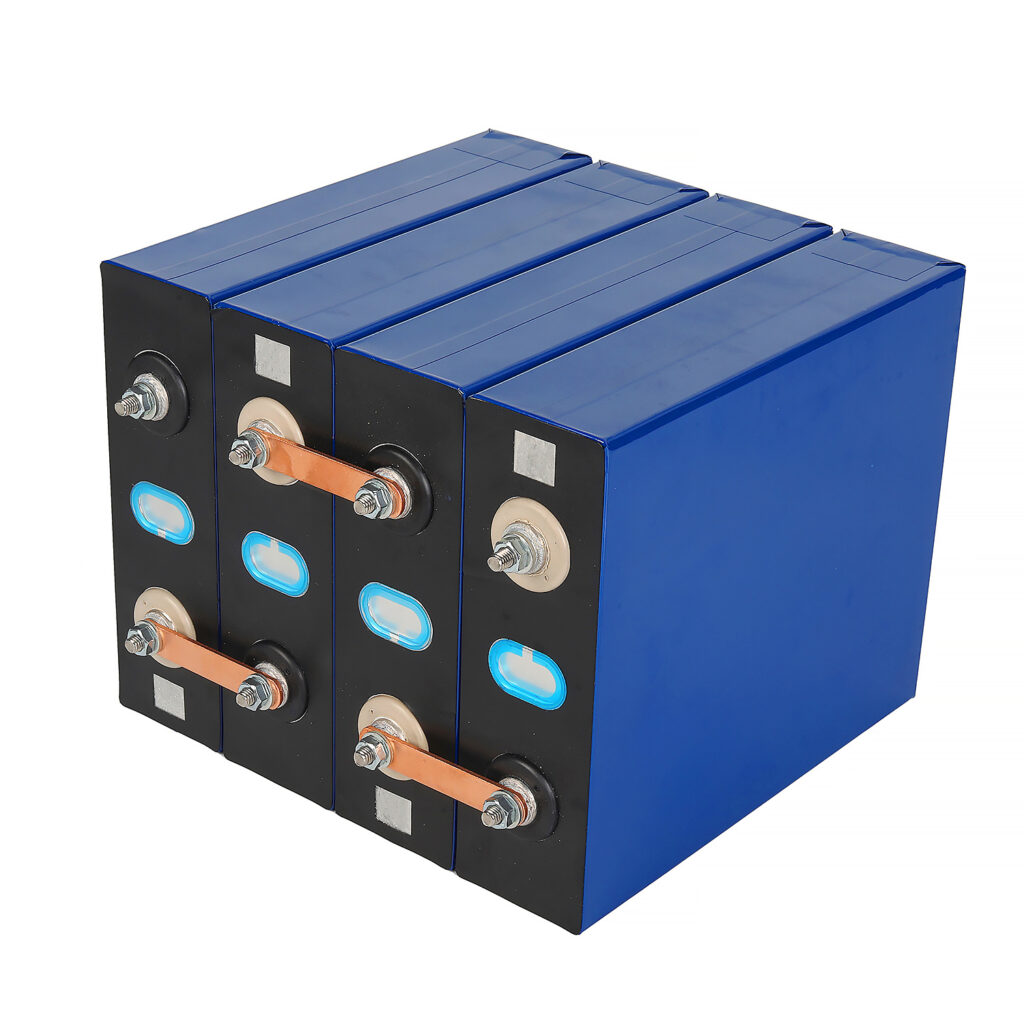

  • BMS 8S100aH Prismatic Cell

Tag in this article:#LiFePO4 Battery #Deep Cycle Battery

Share This Page

FREE SAMPLE

Welcome importers, wholesalers and distributors require free sample

Product Main Benefits

Lighter
Weight
Higher
Power
Maintenance
free
Internal cell
balancing
Built-in
automatic
protection
Longer
Cycle Life
Wider
Temperature
Range
Superior
Safety
Down 60% twice to SLA YES YES YES 20 times
to SLA
-20~60ºC YES

LiFePO4 battery in Golf Carts

Product Application

  • Medical equipment
  • Solar energy storage system
  • Wind energy storage system
  • Mobility,Electric vehicles, Golf trolley,Camping, Boats, Yachts, Camper van, Caravan, Marine
  • Data Center
  • Transport Telecommunication
  • Sports & Recreation
  • UPS, backup power
  • Lighting Utility

Standards & Certifications

    • Compliance with IEC 60896 standards, EU Battery Directive
    • UL, CE Certified
    • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
    • UN38.3, MSDS

Prismatic Cell LiFePO4 Battery Specifications

Rated Voltage
25.6V
Nominal Capacity 100Ah
(@0.2C)
Dimension Length
522±2mm ( 20.6 inches)
Width
240±2mm (9.5 inches)
Container Height
218±2mm (8.6 inches)
Total Height
223±2mm (8.8 inches)
Weight
Approx. 21.9 Kg(48.3 lbs)
Terminal
M8
Container Material
ABS
Efficiency of Charge 100% @0.2C
Efficiency of Discharge 96 ~99% @1C
Internal Resistance(25℃)
Approx 55mΩ
Operating Temp. Range Discharge
-20~60℃ (-4~140℉)@60±25% Relative Humidity
Charge
0~55℃ (32~131℉)@60±25% Relative Humidity
Storage
-20~45℃ (-4~113℉)@60±25% Relative Humidity
Nominal Operating Temp.Range
25±5℃ (77±5℉)
Cycle Life >2000 cycles @ 0.2C 100% DOD
Charge Voltage 29.2±0.2V 29.6±0.2V (Cut-off Voltage)
Charge Current 20A
50A(Max.)
Charge Mode
0.2C to 29.2V, then 29.2,charge current 0.02C(CC/CV)
Rated Discharge Current 100A
300A(<3s) and Discharge Cut-off@10v
Self Discharge

<3% per month at 25℃

Battery Structure Diagram

24v100ah layout
24v100ah layout



Battery Charging/Discharge Curve

Different Rate Discharge Curve(25℃)
Temperature Discharge Curve(0.5C)

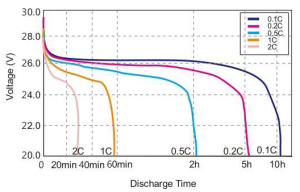

24v100 LiFePO4 discharge-time

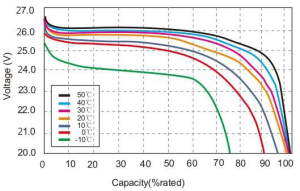

24v100 LiFePO4 discharge-capacity

State of Charge Curve(0.5C, 25℃)
Charging Characteristics(0.5C, 25℃)

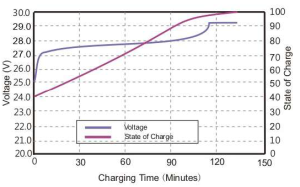

24v100 LiFePO4 charging-time

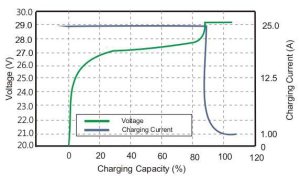

24v100 LiFePO4 charging-capacity
Different DOD Discharge Cycle Life Curve(1C)
Different Temperature Self Discharge Curve
LFP12-100 cycle curve
LFP12-100 storage curve

LFP24-100 25.6V100Ah Compatible Replacement LiFePO4 Battery manufacturer


Product Datasheet Download:

Datasheet LFP12-150

Datasheet LFP24-100

Datasheet LFP12-100



Tips: more detail information, for Deep Cycle LiFePO4 batteries
