LFP12-24 12V24Ah Deep Cycle LiFePO4 battery

Deep Cycle LiFePO4 battery General Features & benefits.

  • Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.
  • Lighter Weight: About 40% of the weight of a comparable lead acid battery.
  • Higher Power: Delivers twice power of lead acid battery
  • Wider Temperature Range: -20 ºC ~60 ºC
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact,overcharging or short circuit situation.
  • Maintenance free
  • Internal cell balancing
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature

Tag in this article:#LiFePO4 Battery #Deep Cycle Battery

Share This Page

FREE SAMPLE

Welcome importers, wholesalers and distributors require free sample

Product Main Benefits

Lighter
Weight
Higher
Power
Maintenance
free
Internal cell
balancing
Built-in
automatic
protection
Longer
Cycle Life
Wider
Temperature
Range
Superior
Safety
Down 60% twice to SLA YES YES YES 20 times
to SLA
-20~60ºC YES

LiFePO4 battery in Golf Carts

Product Application

  • Medical equipment
  • Solar energy storage system
  • Wind energy storage system
  • Mobility,Electric vehicles, Golf trolley
  • Data Center
  • Transport Telecommunication
  • Sports & Recreation
  • UPS, backup power
  • Lighting Utility
  • replacement CA12240 NP24-12B DJW12-24

Standards & Certifications

    • Compliance with IEC 60896 standards, EU Battery Directive
    • UL, CE Certified
    • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

Deep Cycle LiFePO4 Battery Specifications

Rated Voltage
12.8V
Nominal Capacity 24Ah
(@0.2C)
Dimension Length
181±2mm ( 7.12 inches)
Width
77±2mm (3.03 inches)
Container Height
167±2mm (6.57 inches)
Total Height
167±2mm (6.57 inches)
Weight
Approx. 2.9 Kg(6.39 lbs)
Terminal
M5
Container Material
ABS
Efficiency of Charge 100% @0.2C
Efficiency of Discharge 96 ~99% @1C
Internal Resistance(25℃)
Approx 60mΩ
Operating Temp. Range Discharge
-20~60℃ (-4~140℉)@60±25% Relative Humidity
Charge
0~55℃ (32~131℉)@60±25% Relative Humidity
Storage
-20~45℃ (-4~113℉)@60±25% Relative Humidity
Nominal Operating Temp.Range
25±5℃ (77±5℉)
Cycle Life >2000 cycles @ 0.2C 100% DOD
Charge Voltage 14.6±0.2V 14.6±0.2V (Cut-off Voltage)
Charge Current 6A
15A(Max.)
Charge Mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Rated Discharge Current 6A (30A Max.)
60A(<3s) and Discharge Cut-off@10v
Self Discharge

<3% per month at 25℃

Battery Structure Diagram

LFP12-24 layout



Battery Charging/Discharge Curve

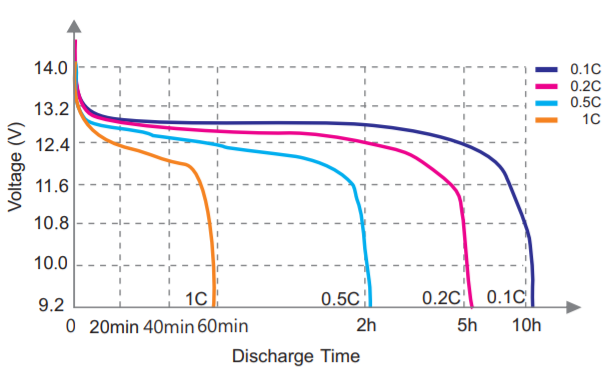

Different Rate Discharge Curve(25℃)

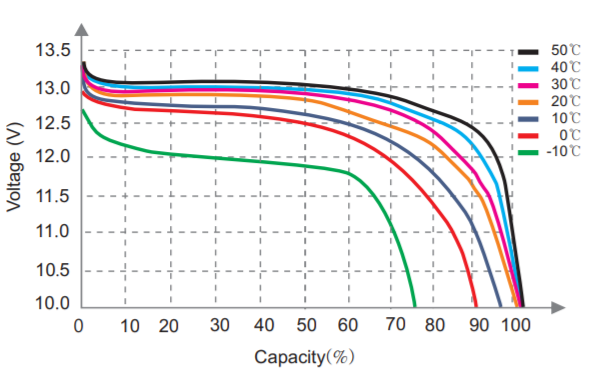

Temperature Discharge Curve(0.5C)
LFP12-100-discharge

LFP12-100-voltage curve

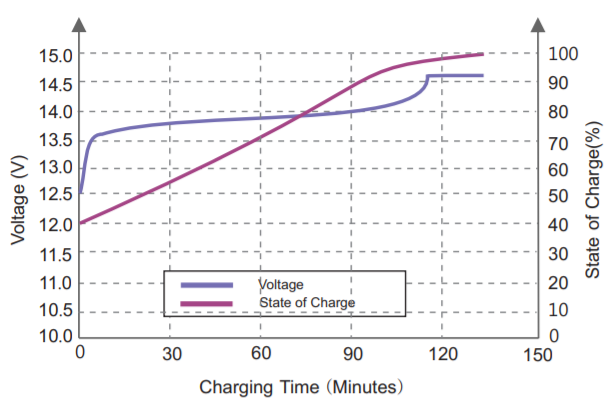

State of Charge Curve(0.5C, 25℃)

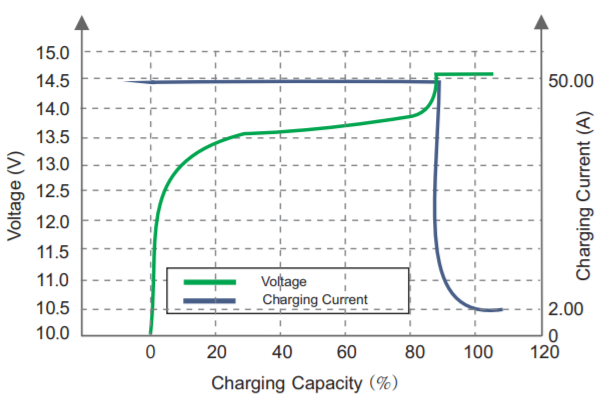

Charging Characteristics(0.5C, 25℃)
LFP12-100 charging
LFP12-100 charging curve

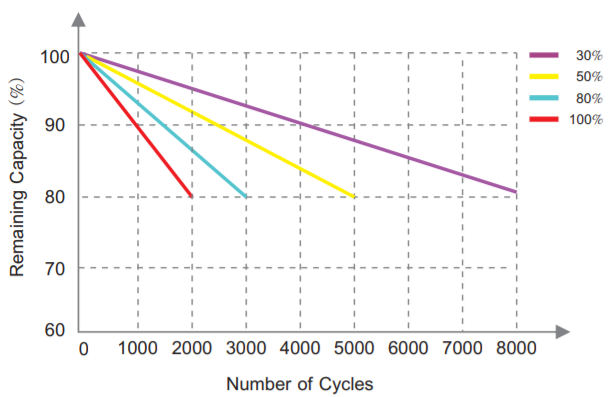

Different DOD Discharge Cycle Life Curve(1C)

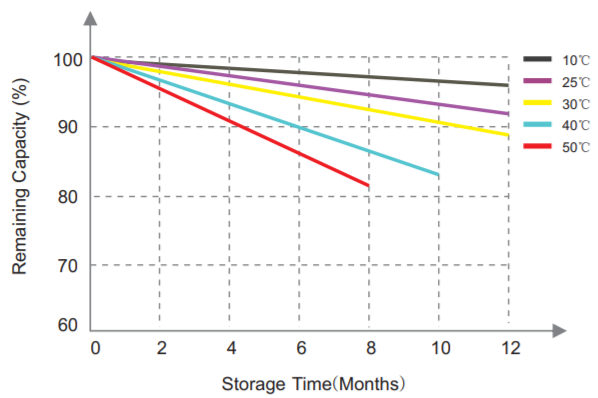

Different Temperature Self Discharge Curve
LFP12-100 cycle curve
LFP12-100 storage curve

Tips: more detail information, for Deep Cycle LiFePO4 batteries
