Front Terminal FT AGM Battery Benefit

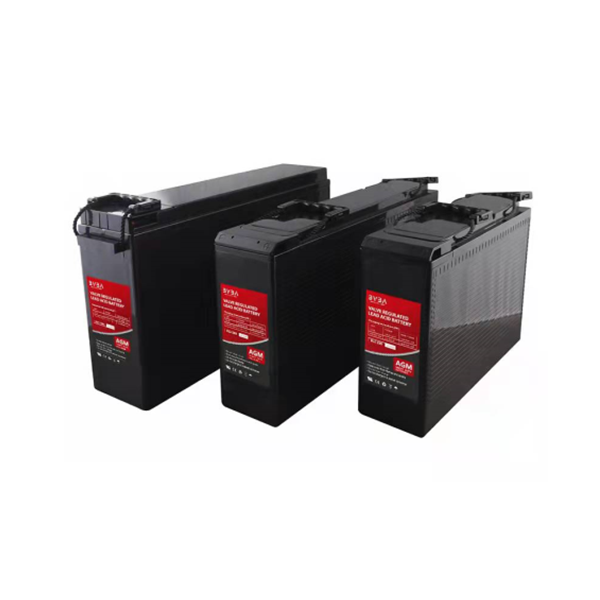

front teminal agm battery

Front-Terminal AGM battery for telecommunication adopts high-tin alloy grid to enhance corrosion resistance of plates; pasted type thick plate to reduce the utilization of active material; AGM separator of high porosity, large aperture and high web-elasticity; tight assembling technology; patented terminal sealing construction and the cuing process of the adhesive at high temperature; FV-0 level flame retardant ABS material battery container; case formation technics and vacuum acid filling method; precise,quantitative,low temperature ,vacuum acid filling method; special gel electrolyte additives; advanced and environmentally friendly container formation technics ensures battery stable consistency.
Front-terminal VRLA battery mainly use at telecommunication and UPS system. The battery has the characteristic of long float charging life, excellent over-discharge tolerance, excellent cycling performance, stable consistency, large current discharge performance, low internal resistance, satety and etc.

AGM Battery for RV

RV and Caravan

Gel battery for solar panel

Solar Panel Battery

Battery for Telecom Equipment

Telecom Equipment

Battery for UPS Backup Power

UPS or Backup Power

FT AGM Battery Models

12V series
ModelVoltage(V)Capacity(Ah)Dimensions (L,W,H,Total Height*mm)Weight(kg)Terminal
FT12-551255291*106*230*23016.8M68.5
FT12-551255291*106*230*23018M67.5
FT12-90A1290562*114*188*18824M87
FT12-901290562*114*188*18826.5M85.8
FT12-100A12100508*110*236*23627M86.5
FT12-10012100508*110*236*23628.5M86
FT12-100A12100410*109*285*29328.5M86
FT12-100S12100410*109*285*29331M86
FT12-105A12105508*110*236*23629M87.5
FT12-10512105508*110*236*23632.5M86.5
FT12-110A12110410*109*285*29329.5M86.5
FT12-11012110410*109*285*29331.2M86.5
FT12-150A12150565*110*288*28839.5M86
FT12-15012150565*110*288*28843.5M85
FT12-16012160565*110*288*28847M84.8
FT12-180A12180560*125*316*31648M84.8
FT12-18012180560*125*316*31652M84
FT12-18512185560*125*316*31654M84
FT12-200A12200560*125*316*31654M84
FT12-20012200560*125*316*31657.5M84

FT AGM batteries Production Process

Lead powder preparing

Lead Powder preparing

Vietnam Factory
Grid casting

Grid casting

Vietnam Factory
Lead ignot

Lead ignot

Vietnam Factory
Assembling line

Fast delivery

Vietnam Factory

10 Pros of Front Terminal AGM Battery?

  • Long Life: 12 years design life in floating condition
  • Wide operating temperature range: from -15°C to 60℃
  • Advanced paste formula with increased recharge efficiency
  • Front access terminal with standard width for 19” and 23” ETSI racks
  • 30% decreased float current lead to excellent high temperature resistance
  • High purity lead-tin alloy, reduce battery self discharge rate and increase battery service life.
  • Low self-discharge rate
  • Excellent deep discharge recovery capability
  • Battery can be installed in any position. Easy instalation and handling.
  • Heat sealing technique instead of glue sealing to increase the tightness and stability of battery.

Brava Battery, one Front Teminal agm batteries supplier:

Vietnam factory

Vietnam factory

Vietnam Factory
Small QTY support

Small QTY support

Vietnam Factory
20years experience

20years experience

Vietnam Factory
Fast delivery

Fast delivery

Vietnam Factory
Ask For A Quote

Small Quantity, OEM & ODM services are fully supported, please leave a message below.

For our specific models, please see front terminal AGM Battery.
