LFP20L-BS motorcycles LiFePO4 battery || Replace YB16L-B, YB16CL-B, YB16HL-A-CX YB18L-A YTX20, YTX20L, YTX20L-BS

Motorcycles LiFePO4 battery General Features & benefits:

  • Replaces YB16L-B, YB16CL-B, YB16HL-A-CX YB18L-A YTX20, YTX20L, YTX20L-BS
  • Almost triple the power of the stock lithium battery!
  • For use in all dirt bikes past and present! One size does fit all!
  • Includes foam mats to fill in the extra space in your battery box
  • Remarkably low self-discharge for extended storage periods up to one year
  • Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery.
  • Lighter Weight: About 40% of the weight of a comparable lead acid battery.Weighs only 1.6KG with 375 Peak Cranking Amps!
  • Higher Power: Delivers twice power of lead acid battery
  • Wider Temperature Range: -20 ºC ~60 ºC
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact,overcharging or short circuit situation.
  • Maintenance free
  • Internal cell balancing
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature

Tag in this article:#LiFePO4 Battery #Deep Cycle Battery

Share This Page

FREE SAMPLE

Welcome importers, wholesalers and distributors require free sample

Lighter
Weight
Higher
Power
Maintenance
free
Internal cell
balancing
Built-in
automatic
protection
Longer
Cycle Life
Wider
Temperature
Range
Superior
Safety
Down 60% twice to SLA YES YES YES 20 times
to SLA
-20~60ºC YES

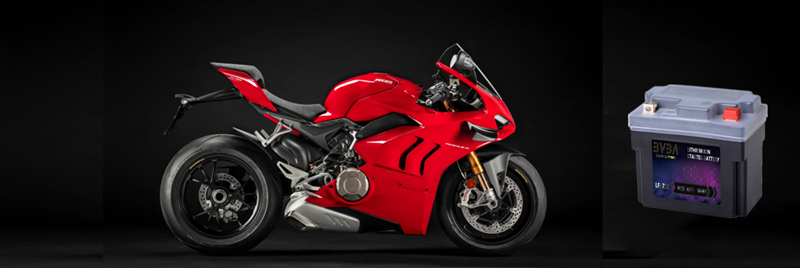

lifepo4 battery in motorcycles

LifePo4 Battery Product Applications

  • Replaces YB16L-B, YB16CL-B, YB16HL-A-CX YB18L-A YTX20, YTX20L, YTX20L-BS
  • Starting applications
  • Star-Stop & Micro-hybrid vehicle applications

Tips: more detail application,for gel battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
  • Compliance with IEC 60896 standards,certified production facilities

Motorcycles LiFePo4 battery  Specifications

Rated Voltage
12.8V
Nominal Capacity 96wh
(@1C)
Dimension Length
175±2mm ( 6.89 inches)
Width
87±2mm (3.42 inches)
Container Height
155±2mm (6.10 inches)
Total Height
155±2mm (6.10 inches)
Weight
Approx. 1.6 Kg(3.52 lbs)
Terminal
M6
Container Material
ABS
Capacity vs Temperature 25℃ = 100%
0℃ = 92%
-30℃ = 80%
Pulse Crank Amps (PCA) 460A (3 sec @ 25℃,voltage >9V)
Cold Crank Amps (CCA)
375A (modified SAE test,3 sec@ 0℉, volts >7.2V)
Operating Temp. Range Discharge
-30~60℃
Charge
-30~60℃
Storage
-40~75℃
Nominal Operating Temp.Range
25±5℃ (77±5℉)
Cycle Life 4000 cycles @ 1C discharge rate, 25℃
2000 cycles @10C discharge rate, 25℃
Life (Years) Up to 8 Years
Environmental Rating
IP 66 (wash down with a high pressure washer)
Charge Voltage 14.6±0.2V 15V (Cut-off Voltage)
Charge Current <5A
15A(Max.)
Charge Mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Self Discharge

<3% per month at 25℃

Battery Layout Diagram

lfp20l layout

Tips: more detail information, for lifepo4 battery
