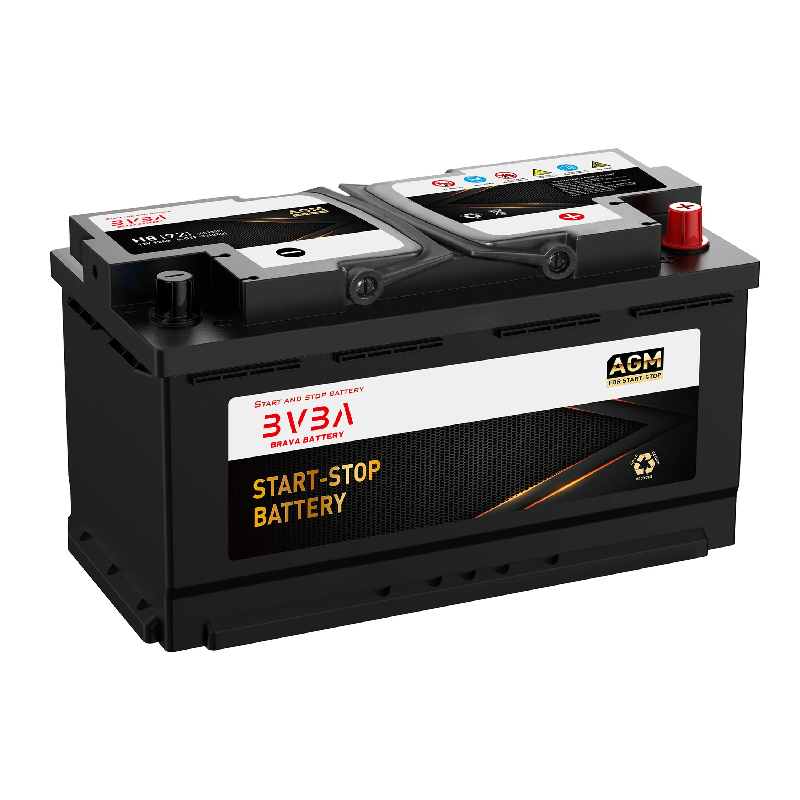

AGM90(DIN88H) 12v90Ah AGM Stop-Start battery replace UB12900

Stop-Start battery General Features & benefits.

With Start-Stop vehicles, the engine is switched off during short stops for instance at traffic lights in order to save fuel and to reduce CO2 emissions by 5-10%.
Technology Focus:In response to CO2 reduction targets set by EU that require engine to be shut off instead of idling while the vehicle is stopped, nearly all vehicle manufacturers launch start-stop platforms in Europe automotive battery.
Requirements:Battery is required to start engine more frequently and provide energy for device support while “stop” mode Battery is integrated within a sophisticated energy and battery management system
Battery Technology:Advanced AGM technology for:
- super high power and cold cranking ampere;
- very good charging acceptance performance;
- much longer cycle life compared to normal flooded car batteries.

Tag in this article:#AGM #Start-Stop

Share This Page

Positive plate	Negative plate	Container Cover	Safety valve	Terminal	Separator	Electrolyte	Pillar seal
Thick high Sn low Ca grid with special paste	Balanced Pb-Ca grid for improved recombinati on efficiency	Fire resistance ABS(UL94-V0 optional)	Flame Si-Rubber and aging resistance	Female Copper Insert M8	Advanced PVC /AGM separator for high pressure cell design	Silicon Gel	Two layers epoxy resin seal

Stop-Start Battery Product Application

Auto motive
Stereo Systems
Boats & RVs
Hydraulic Lifts
Winches
On-board Electronics
replacement UB12900

Tips: more detail application,for AGM battery application.

Standards & Certifications

Compliance with IEC 60896 standards, EU Battery Directive
UL, CE Certified
Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

Stop-Start Battery Specifications

Rated Voltage		12V
Terminal		AP
Container Material		Black PP
Max. Discharge Current		850A (5s)
Internal Resistance(25ºC)		Approx 6.5mΩ
Operating Temp. Range	Discharge	-40～60ºC (-4～140ºF)
	Charge	-20～50ºC (14～122ºF)
	Storage	-40～60ºC (-4～140ºF)
Nominal Operating Temp.Range		25±5ºC (77±5ºF )
Hold-Down	B13
Cell layout	0
Effect of temp. to Capacity	40ºC (104ºF)	103%
	25ºC ( 77ºF)	100%
	0ºC ( 32ºF)	86%
Self Discharge	BP series batteries may be stored for up to 6 months at 25ºC(77ºF) and then a freshening charge is required. For higher temperatures the time interval will be shorter

Battery Structure Diagram

Battery Charging/Discharge Curve

Tips: more detail information, for start/stop car battery。

> Summary for AGM Stop-Start battery

With Start-Stop vehicles, the engine is switched off during short stops for instance at traffic lights in order to save fuel and to reduce co2 emissions by 5-10%.

Technology Focus :

In response to co2 reduction targets set by EU that require engine to be shut off instead of idling while the vehicle is stopped, nearly all vehicle manufacturers launch Start-Stop platforms in Europe automotive battery.

Requirements :

Battery is required to start engine more frequently and provide energy for device support while “stop” mode. Battery is integrated within a sophisticated energy and battery management system.

Battery Technology :

Advanced AGM technology for: super high power and cold cranking ampere; very good charging acceptance performance; much longer cycle life compared to normal flooded car batteries.

>Advantage of AGM Stop-Start battery

Innovative AGM technology (Absorbent Glass Mat) with high compression separator.
Latest OE technology for advanced Stop-Start Battery vehicles.
At least three to four times more cycle life and can meet the requirement of all Stop-Start Battery vehicles and high-end luxury vehicles.
High charging acceptance for absorbing large surges of electrical energy generated via brake energy recuperation.
100% leak-proof and spill-proof to 360°.
Excellent starting power; so you can rely on the engine starting even at a low state of charge.
Longer lifespan.
Totally maintenance-free.

>AGM Stop-Start battery Features & Benefits

Superior starting power, high reserve capacity, and long lasting life.
Maintenance-free advanced AGM technology battery built in same BCI group case/configuration.
100% sealed construction and completely spill-proof and leak-proof design is smart choice for your critical equipment.
Flat plate design makes completed usage of active material, and provides maximum performance and efficiency.
Special micro-porous glass separators can absorb electrolyte completely, eliminate acid spills and terminal corrosion.
Tightly packed construction and calcium reinforced grids plates to prevent plate separation and guard against vibration damage.
Easy fit and easy installation design.
Superb dual terminal design delivers great starting and deep cycle service.
Advanced plate casting machine assures the consistency of plate highest quality and optimum performance.
