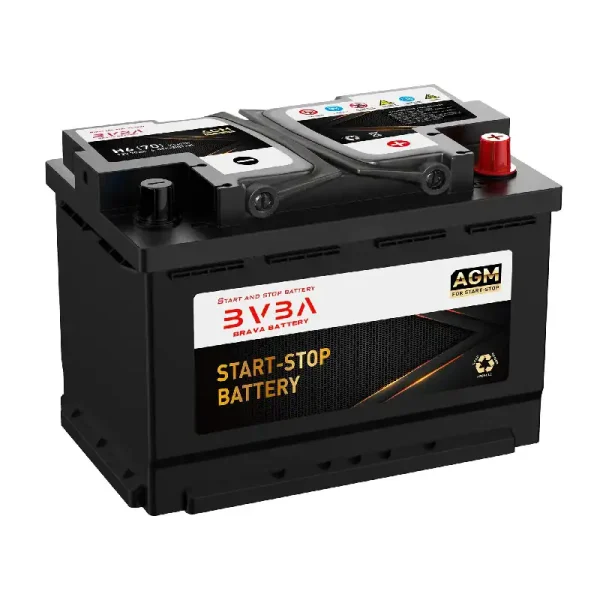

24M550 12v79Ah Dual Purpose Marine Battery

Product Description

Model: 24M-550
BRAVA 12V 79Ah Stop-start batteries are superior high quality, high performance, dual-purpose batteries designed to provide starter engine and back-up power in domestic and commercial applications. to provide reliable performance in the Martine and RV.

Voltage : 12v

CCA : 550A
Rated Capacity : 79Ah@20hr

Reserve Capacity : 79Ah@20hr
Size : 260*168*208*233mm
Weight : 23.0kg
Terminal : M12

Tags

Share This Page
dual purpose marine battery inside
dual purpose marine battery inside

Dual Purpose AGM battery General Features & benefits:

  • High cranking
  • Deep cycle capability
  • Flexible mounting Spill-proof multi position fitment
  • Dual Battery Systems
  • Longer shelf-life versus conventional batteries
  • Suitable for under-bonnet installation
  • Superior construction greater cycle life vs conventional batteries

Stop-Start Battery Product Application

  • Auto motive
  • Stereo Systems
  • Boats & RVs
  • Hydraulic Lifts
  • Winches
  • On-board Electronics
  • replacement SSAGM-66EU, Din65LH AGM, MF66HSS
  • AGM battery factory in CN suitable for Volkswagen, Buick, Cadillac, Audi, Jaguar, Mercedes, Volvo, Chevrolet, Jeep, BMW, Land Rover, Hyundai and other models.

Tips: more detail application,for AGM battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

Stop-Start Battery Specifications



Model 24M550
Rated Voltage 12V
Reserve Capacity 150min
CCA 550A
Rated Capacity 79Ah
Dimension Length 260±2mm(10.24inches)
Width 168±2mm(6.61inches)
Container Height 208±2mm(8.19inches)
Total Height 233±2mm(9.17inches)
Weight Approx 23.0Kg(50.72lbs)
Standard Terminal 12
Cell layout 1
Hold-Down B0
Material ABS
Self Discharge Starter series batteries may be stored for up to 6 months at 25ºC(77ºF) and then a freshening
charge is required. For higher temperatures the time interval will be shorter

Battery Structure Diagram

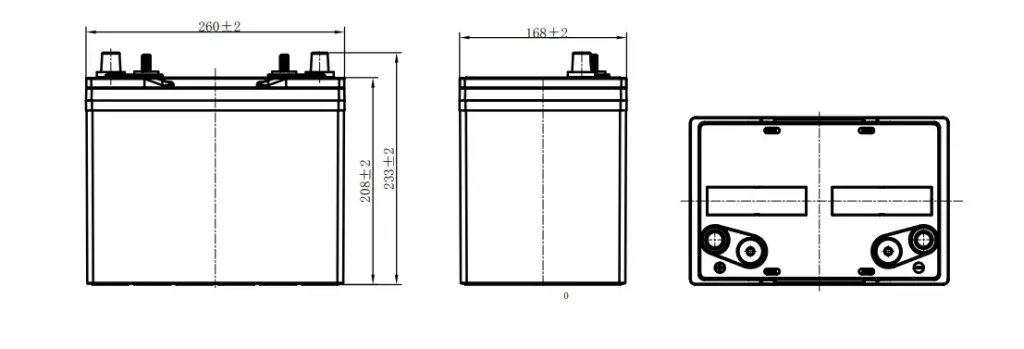

24M550 layout

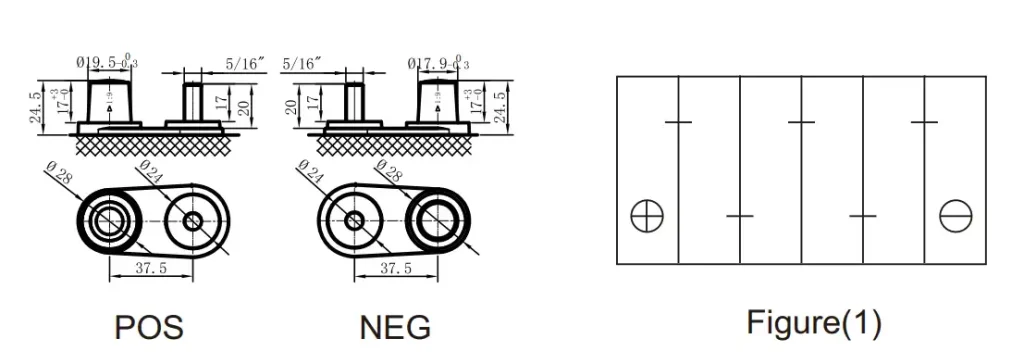

24M550 cell

Battery Charging/Discharge Curve

ATM70 curve
ATM70 curve

ATM70 discharge
ATM70 discharge



Tags:


What Is a Dual Purpose Marine Battery?

As the name suggests, dual-purpose marine batteries offer the abilities of both major kinds of batteries all in one unit. Rather than having a starting battery and a deep-cycle battery, dual-purpose batteries can handle both jobs at the same time. Boats with less room for larger or more numerous batteries can benefit from having a dual-purpose marine battery instead.

Depending on the battery’s construction and materials, you might find that they don’t perform as well as batteries with a more specific purpose in mind.

Note: Marine Starting Batteries

While not our main focus, it’s worth the time to mention the purpose of marine starting batteries. While they have a few other names, the major purpose for all of them is to start off your boat’s engine when you first turn it on. They don’t offer much in terms of long-term power, but they do provide a burst of energy that you’ll need to jumpstart your boat back awake after it’s been off for some time.
