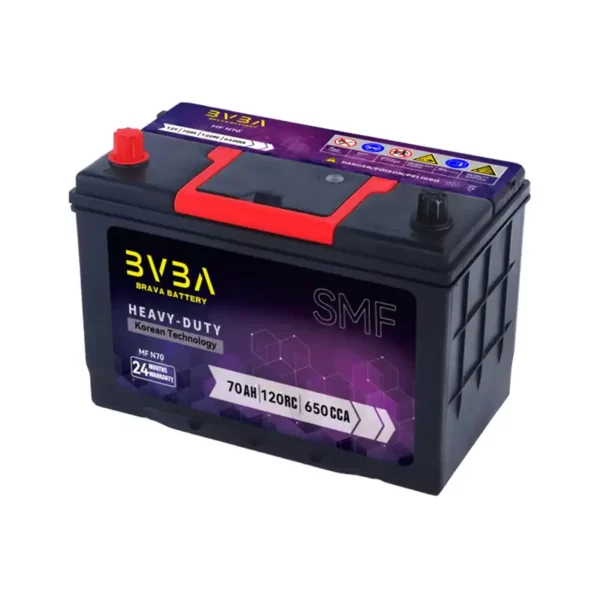

N70 (65D31R) 12V70AH JIS SMF CAR Battery

Product Description

Model: N70
BRAVA N70 (65D31R, 6-QW-70R-B) JIS series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under JIS technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Voltage : 12v
Capacity : 70Ah
Size : 256*170*203*225mm
Weight : 19.3kg
Terminal : 1


Share This Page

Physical Specification (mm)

Model N70 (65D31R)
Nominal Voltage 12V
Nominal Capacity(20HR) 70Ah
Dimension Length 304±2mm(11.96inches)
Width 170±2mm(6.69inches)
Container Height 203±2mm(7.99inches)
Total Height(with Terminal) 225±2mm(8.86inches)
Weight With Acid Approx 19.3Kg(42.5lbs)
Acid 1.280±0.015g/cm (25ºC)
Standard Terminal 1
Cell layout 1
Hold-Down B1
Case Black-Material (PP)
Cover Black-Material (PP)
Handle Black-Material (PP)

Electrical Specification

Rated Capacity @20 hour rate(1.8A) 70Ah
Reserve Capacity (RC) [email protected] 118min
Cold Cranking Amps(CCA) @0 ºF (-18 ºC) 580A(JIS)

Standard Terminal (mm)

Terminal Type D
Positive Negative
1 19.5 17.9
N70 65D31R layout
N70 65D31R layout
N70 65D31R discharge characteristics
N70 65D31R discharge characteristics

Wet Starter SMF Battery JIS Standard Series

Type Volt. C20 C5 RC CCA(JIS) Overall Dimensions(mm) Cell Terminal Hold
Handles Wet
(V) (Ah) (Ah) (Min) (-18℃) L W H TH Layout (Kg)
D31 N70L 65D31L 12 70 56 118 580 303 170 201 222 0 1 B1 TS1 19.3
N70 65D31R 12 70 56 118 580 303 170 201 222 1 1 B1 TS1 19.3
N70ZL 75D31L 12 75 60 128 620 303 170 201 222 0 1 B1 TS1 20
N70Z 75D31R 12 75 60 128 620 303 170 201 222 1 1 B1 TS1 20
NX120-7L 95D31L 12 80 64 138 660 303 170 201 222 0 1 B1 TS1 20.4
NX120-7 95D31R 12 80 64 138 660 303 170 201 222 1 1 B1 TS1 20.4
105D31L 12 83 64 145 700 303 170 201 222 0 1 B1 TS1 21.1
105D31R 12 83 64 145 700 303 170 201 222 1 1 B1 TS1 21.1


1. How to extend the life of a SMF battery?

In order to increase the life of battery, it is necessary to monitor the battery performance constantly. Here are some tips to optimize the battery performance.
1. The SMF battery should be placed in well ventilated area to avoid high temperature environment. With each 10 degree rise in air temperature, the float life reduces to half. If the battery is installed in equipment, it is necessary to isolate it from heat generating components like transformer.
2. In order to prevent deep discharge, it is necessary to set the cut off voltage to 11.5 volts in 12 volt battery and 4.5 in 6 volt battery.
3. It is necessary to prevent no load battery drain. The additional components of the equipment such as sensors, displays and indicators consume power in the no load condition. So if the equipment is not provided with automatic charging, this power loss leads to deep discharge.

4. Boost cum float charging is suitable for SMF battery. If the power failure is frequent, the battery should be charged immediately to acquire full charge before the next power failure.

5. If there is any problem such as low backup time, battery heating, low terminal voltage even after continuous charging develops, the battery should be attended immediately.

6. If the equipment is not using for long time, it should be charged once in every week. If the battery is allowed to charge and discharge frequently, its life can be extended to 3-5 years.

2. What’s the SMF Battery?

Sealed Maintenance Free batteries are widely used where minimal maintenance and space requirements are the main considerations. In UPS systems, it is used because of its maintenance free and eco friendly features. SMF batteries do not require water and acid top up and are totally maintenance free. There is no water loss during the charge- discharge cycle and the battery works on the oxygen recombination principle. SMF battery is also called as Valve Regulated Lead Acid or VRLA battery.
