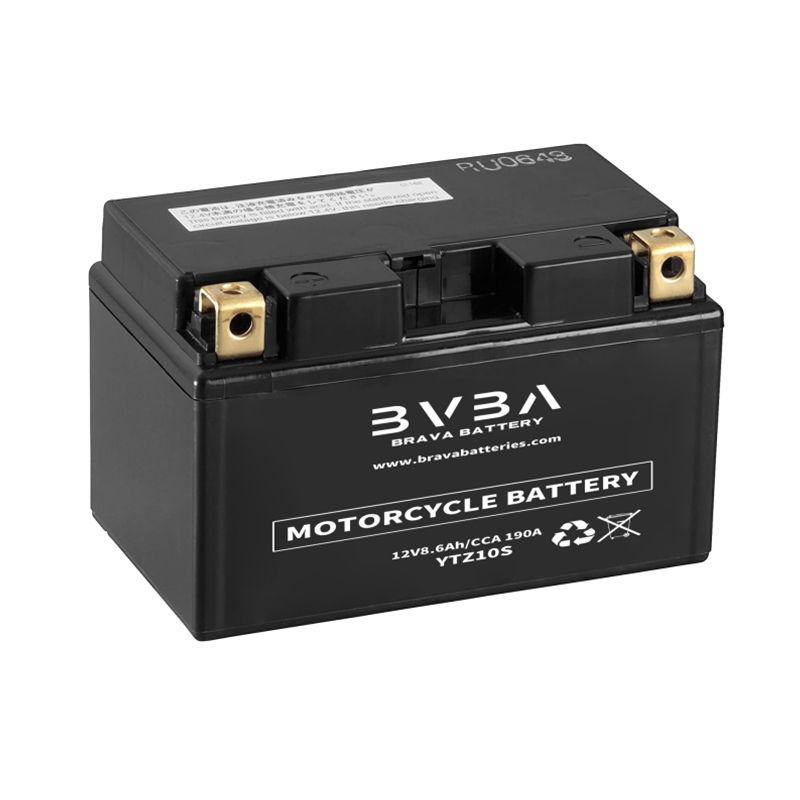

YTZ10S Motorcycle Battery

YTZ10S Motorcycle battery General Features & benefits.

  • Maintenance-free design
  • Sealing structure of ABS materials
  • Low self-discharge
  • High CCA and good starting performance: Up to 30% more CCA than standard AGM batteries despite being lighter & more compact.

Tags:


Share This Page

YTZ10S in motorcycle

YTZ10S Battery Product Application

  • Motorcycle
  • ATV
  • Boats & RVs
  • Scooter
  • Winches
  • Replacement LTZ10S, KTZ10S, YTZ10S-BS, HPG10A4, LTZ10S
  • AGM battery factory in CN suitable for Volkswagen, Buick, Cadillac, Audi, Jaguar, Mercedes, Volvo, Chevrolet, Jeep, BMW, Land Rover, Hyundai and other models.

Tips: more detail application,for AGM battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

YTZ10S ATV Battery Specifications



Model YTZ10S
Rated Voltage 12V
Weight Approx 3.18kg
Capacity 8.6Ah
Terminal F
Container Material Black PP
CCA 190A
Internal Resistance(25ºC) Approx 15mΩ
Operating Temp. Range Discharge
-40~60ºC (-4~140ºF)
Charge
-20~50ºC (14~122ºF)
Storage
-40~60ºC (-4~140ºF)
Nominal Operating Temp.Range 25±5ºC (77±5ºF )
Constant-Current Charge Charging cerreng:0.1C,when charging voitage up to 14.4V, continue to charge 4h
Floating Charge Charging current less than 0.25C Voltage: 13.60V~ 13.80V @ 25℃ (77ºF)
Effect of temp. to Capacity 40ºC (104ºF)
103%
25ºC ( 77ºF)
100%
0ºC ( 32ºF)
86%
Self Discharge Motorcycle series batteries may be stored for up to 6 months
at 25ºC(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter

YTZ10S Battery Structure Diagram

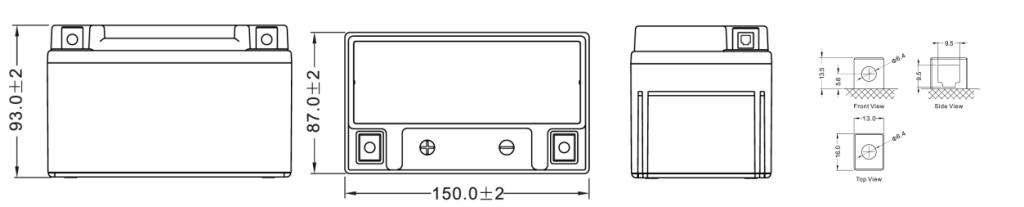

YTZ10S Layout

YTZ10S ATV Battery Charging/Discharge Curve



Descharge Characteristics
Self Discharge Characteristic

YTZ5S-BS motorcycle battery discharge characteristics

YTZ5S-BS motorcycle battery self discharge characteristics

Advantages of motorcycle battery series

Heat Sealed Case To Cover
Protects against leakage and corrosion and provides for extra stength and durability.

Special Active Material
Compounded to withstand vibration, it prolongs the battery life in storage and provides reliable starting power when needed

Unique Expanded Plate Grid Design
Increased number of plates for maximum starting power and to withstand severe vibration resistance

AGM Separators
Absorbed Glass Matt separators absorb the electrolyte and make the battery spill-proof. The valve regulated design eliminates water loss and the need for refilling

Polypropylene (PP) Cover & Container
Protects against fuel and oil and designed to withstand vibration and impact under extreme conditions
