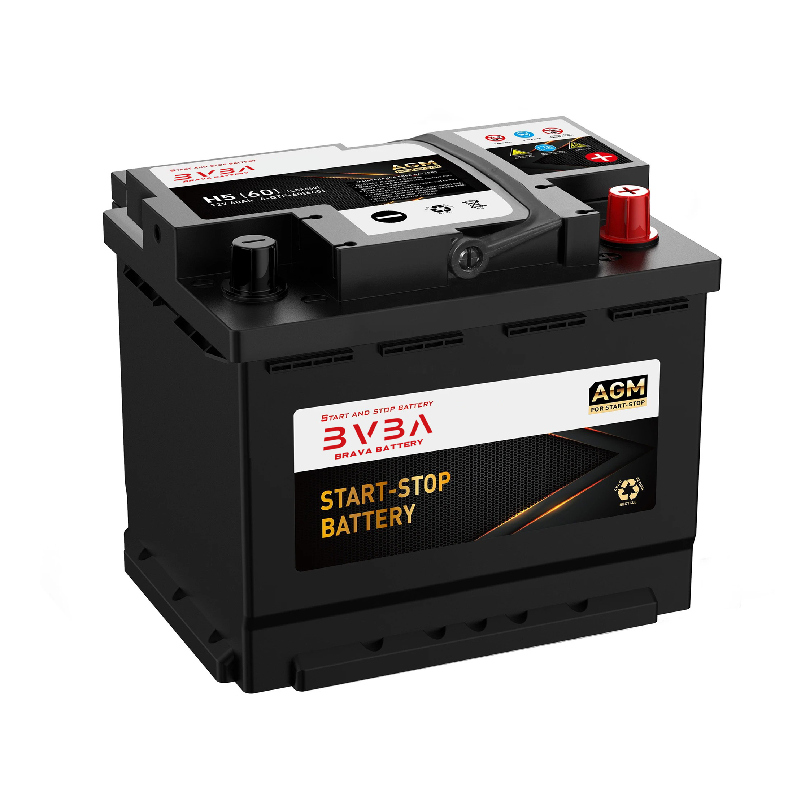

H5 AGM-60 12v60Ah AGM Stop-Start battery

Stop-Start battery General Features & benefits.

  • With Stop-Start Battery vehicles, the engine is switched off during short stops for instance at traffic lights in order to save fuel and to reduce CO2 emissions by 5-10%.
  • Technology Focus:In response to CO2 reduction targets set by EU that require engine to be shut off instead of idling while the vehicle is stopped, nearly all vehicle manufacturers launch start-stop platforms in Europe automotive battery.
  • Requirements:Battery is required to start engine more frequently and provide energy for device support while “stop” mode Battery is integrated within a sophisticated energy and battery management system
  • Battery Technology:Advanced AGM technology for:
    • super high power and cold cranking ampere;
    • very good charging acceptance performance;
    • much longer cycle life compared to normal flooded car batteries.
    • Lead carbon technology make battery with good starting ability in low temperature, and fast charging acceptance
    • Ideal for start-stop applications
    • AGM batteries can also withstand extreme external temperatures and have high power reserves.

Tag in this article:#AGM #Start-Stop

Share This Page
Positive
plate
Negative
plate
Container
Cover
Safety
valve
Terminal  Separator  Electrolyte  Pillar
seal
Thick high Sn
low Ca grid
with special
paste
Balanced Pb-Ca
grid for improved
recombinati
on efficiency
Fire resistance
ABS(UL94-V0
optional)
Flame
Si-Rubber
and aging
resistance
Female
Copper
Insert M8
Advanced
PVC /AGM
separator for
high pressure
cell design
Silicon Gel Two layers
epoxy
resin seal

car within stop-start battery

Stop-Start Battery Product Application

  • Auto motive
  • Stereo Systems
  • Boats & RVs
  • Hydraulic Lifts
  • Winches
  • On-board Electronics
  • replacement SSAGM-66EU, Din65LH AGM, MF66HSS
  • AGM battery factory in CN suitable for Volkswagen, Buick, Cadillac, Audi, Jaguar, Mercedes, Volvo, Chevrolet, Jeep, BMW, Land Rover, Hyundai and other models.

Tips: more detail application,for AGM battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

Stop-Start Battery Specifications



Model H5/AGM-60
Rated Voltage
12V
Terminal
AP
Container Material
Black PP
Max. Discharge Current
600A (5s)
Internal Resistance(25ºC)
Approx 7.5mΩ
Operating Temp. Range Discharge
-40~60ºC (-4~140ºF)
Charge
-20~50ºC (14~122ºF)
Storage
-40~60ºC (-4~140ºF)
Nominal Operating Temp.Range
25±5ºC (77±5ºF )
Hold-Down B13
Cell layout

0

Effect of temp. to Capacity 40ºC (104ºF)
103%
25ºC ( 77ºF)
100%
0ºC ( 32ºF)
86%
Self Discharge

BP series batteries may be stored for up to 6 months
at 25ºC(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter

Battery Structure Diagram

ATM70-layout
Battery Charging/Discharge Curve
ATM70-curve
ATM70-discharge



DIN Standard Start-Stop CAR Battery With AGM Technology

Group BCI Group DIN No. Capacity (20HR) RC
Min
CCA
EN
Dimension ( mm) Layout Terminal Hold-
Down
Length Width Height T.Height

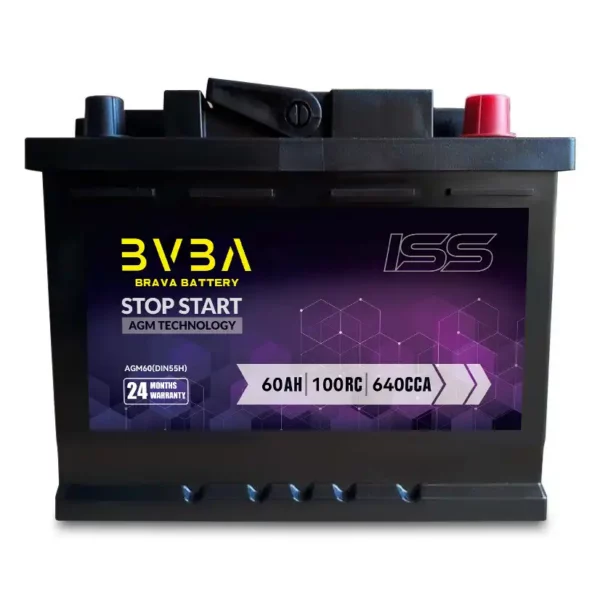

DIN L2 47/H5 AGM60L-DIN 60 100 640 242 174 189 189 0 A B13
DIN L3 48/H6 AGM70L-DIN 70 120 760 275 174 189 189 0 A B13
DIN L4 94R/H7 AGM80L-DIN 80 140 800 314 174 189 189 0 A B13
DIN L5 49/H8 AGM95L-DIN 95 160 850 351 174 189 189 0 A B13

> Summary for AGM Stop-Start battery

With Start-Stop vehicles, the engine is switched off during short stops for instance at traffic lights in order to save fuel and to reduce co2 emissions by 5-10%.

  • Technology Focus :

In response to co2 reduction targets set by EU that require engine to be shut off instead of idling while the vehicle is stopped, nearly all vehicle manufacturers launch Start-Stop platforms in Europe automotive battery.

  • Requirements :

Battery is required to start engine more frequently and provide energy for device support while “stop” mode. Battery is integrated within a sophisticated energy and battery management system.

  • Battery Technology :

Advanced AGM technology for: super high power and cold cranking ampere; very good charging acceptance performance; much longer cycle life compared to normal flooded car batteries.

>Advantage of AGM Stop-Start battery

  • Innovative AGM technology (Absorbent Glass Mat) with high compression separator.
  • Latest OE technology for advanced Stop-Start Battery vehicles.
  • At least three to four times more cycle life and can meet the requirement of all Stop-Start Battery vehicles and high-end luxury vehicles.
  • High charging acceptance for absorbing large surges of electrical energy generated via brake energy recuperation.
  • 100% leak-proof and spill-proof to 360°.
  • Excellent starting power; so you can rely on the engine starting even at a low state of charge.
  • Longer lifespan.
  • Totally maintenance-free.

>AGM Stop-Start battery Features & Benefits

  • Superior starting power, high reserve capacity, and long lasting life.
  • Maintenance-free advanced AGM technology battery built in same BCI group case/configuration.
  • 100% sealed construction and completely spill-proof and leak-proof design is smart choice for your critical equipment.
  • Flat plate design makes completed usage of active material, and provides maximum performance and efficiency.
  • Special micro-porous glass separators can absorb electrolyte completely, eliminate acid spills and terminal corrosion.
  • Tightly packed construction and calcium reinforced grids plates to prevent plate separation and guard against vibration damage.
  • Easy fit and easy installation design.
  • Superb dual terminal design delivers great starting and deep cycle service.
  • Advanced plate casting machine assures the consistency of plate highest quality and optimum performance.



Tips: more detail information, for start/stop car battery
