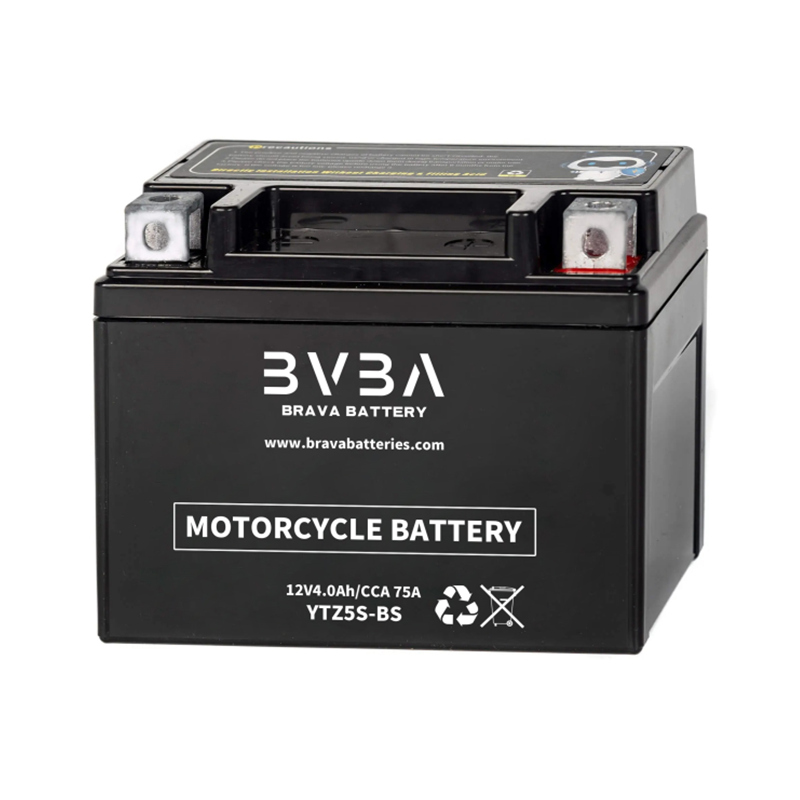

YTZ5S-BS motorcycle battery
YTZ5S-BS Motorcycle battery General Features & benefits.
- Maintenance-free design
- Sealing structure of ABS materials
- Low self-discharge
- High CCA and good starting performance: Up to 30% more CCA than standard AGM batteries despite being lighter & more compact.
Tag in this article:#AGM #Start-Stop
FREE SAMPLE
Welcome importers, wholesalers and distributors require free sample
YTZ5S-BS Motorcycle Battery Product Application
- Motorcycle
- ATV
- Boats & RVs
- Scooter
- Winches
- replacement YTZ5S PTZ5S GTZ5S CTZ5S
- AGM battery factory in CN suitable for Volkswagen, Buick, Cadillac, Audi, Jaguar, Mercedes, Volvo, Chevrolet, Jeep, BMW, Land Rover, Hyundai and other models.
Tips: more detail application,for AGM battery application.
Standards & Certifications
- Compliance with IEC 60896 standards, EU Battery Directive
- UL, CE Certified
- Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
Motorcycle Battery Specifications
Model | YTZ5S-BS | |
Rated Voltage |
12V
|
|
Terminal |
QM5
|
|
Container Material |
Black PP
|
|
CCA |
75A
|
|
Internal Resistance(25ºC) |
Approx 20mΩ
|
|
Operating Temp. Range | Discharge |
-40~60ºC (-4~140ºF)
|
Charge |
-20~50ºC (14~122ºF)
|
|
Storage |
-40~60ºC (-4~140ºF)
|
|
Nominal Operating Temp.Range |
25±5ºC (77±5ºF )
|
|
Constant-Current Charge | Charging cerreng:0.1C,when charging voitage up to 14.4V, continue to charge 4h | |
Floating Charge |
Charging current less than 0.25C Voltage: 13.60V~ 13.80V @ 25℃ (77ºF) |
|
Effect of temp. to Capacity | 40ºC (104ºF) |
103%
|
25ºC ( 77ºF) |
100%
|
|
0ºC ( 32ºF) |
86%
|
|
Self Discharge |
Motorcycle series batteries may be stored for up to 6 months |
YTZ5S-BS Battery Structure Diagram
YTZ5S-BS Motorcycle Battery Charging/Discharge Curve
Descharge Characteristics
|
Self Discharge Characteristic
|
|
|
![]() |
Advantages of motorcycle battery series
Heat Sealed Case To Cover
Protects against leakage and corrosion and provides for extra stength and durability.
Special Active Material
Compounded to withstand vibration, it prolongs the battery life in storage and provides reliable starting power when needed
Unique Expanded Plate Grid Design
Increased number of plates for maximum starting power and to withstand severe vibration resistance
AGM Separators
Absorbed Glass Matt separators absorb the electrolyte and make the battery spill-proof. The valve regulated design eliminates water loss and the need for refilling
Polypropylene (PP) Cover & Container
Protects against fuel and oil and designed to withstand vibration and impact under extreme conditions
