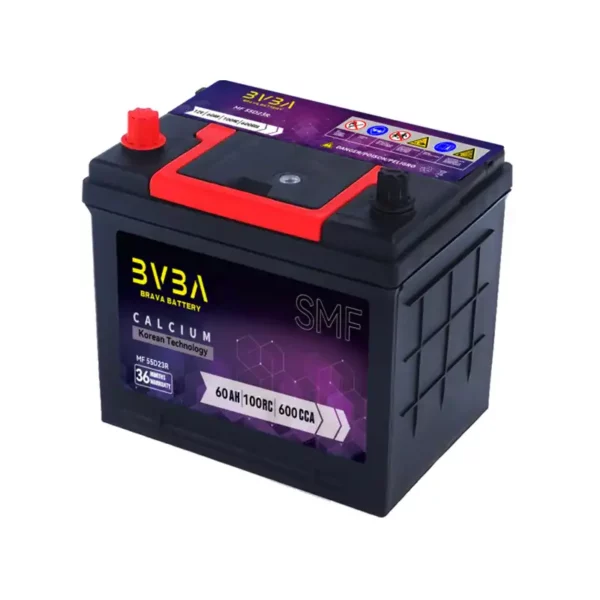

55D23R 12V60AH JIS SMF CAR Battery

Product Description

Model: 55D23R
BRAVA 55D23R, 6-QW-60R-C) JIS series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under JIS technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Voltage : 12v
Capacity : 70Ah
Size : 230*170*199*219mm
Weight : 15.5kg
Terminal : 1

Tags:

Model

55D23R

Nominal Voltage

12V

Nominal Capacity(20HR)

60Ah

Dimension

Length

230±2mm(9.06inches)

Width

170±2mm(6.69inches)

Container Height

202±2mm(7.95inches)

Total Height(with Terminal)

222±2mm(8.74inches)

Weight With Acid

Approx 15.5Kg(34.2lbs)

Acid

1.280±0.015g/cm (25ºC)

Standard Terminal

Cell layout

Hold-Down

Case

Black-Material (PP)

Cover

Black-Material (PP)

Handle

Black-Material (PP)

Rated Capacity

@20 hour rate(1.8A)

60Ah

Reserve Capacity (RC)

[email protected]

98min

Cold Cranking Amps(CCA)

@0 ºF (-18 ºC)

550A(JIS)

Terminal Type

Positive

Negative

19.5

17.9

Wet Starter SMF Battery JIS Standard Series

Group No.	Old Type	Type	Volt.	C20	C5	RC	CCA(JIS)	Overall Dimensions(mm)	Cell	Terminal	Hold Down	Handles	Wet Weight
(V)	(Ah)	(Ah)	(Min)	(-18℃)	L	W	H	TH	Layout	(Kg)
D23		55D23L	12	60	48	98	550	230	170	199	219	0	1	B0	TS1	15.5
	55D23R	12	60	48	98	550	230	170	199	219	1	1	B0	TS1	15.5
	75D23L	12	63	52	105	600	230	170	199	219	0	1	B0	TS1	16.2
	75D23R	12	63	52	105	600	230	170	199	219	1	1	B0	TS1	16.2

Group
No.

Old
Type

Type

Volt.

C20

CCA(JIS)

Overall Dimensions(mm)

Cell

Terminal

Hold
Down

Handles

Wet
Weight

(V)

(Ah)

(Min)

(-18℃)

Layout

(Kg)

D23

55D23L

550

230

170

199

219

TS1

15.5

55D23R

550

230

170

199

219

TS1

15.5

75D23L

105

600

230

170

199

219

TS1

16.2

75D23R

105

600

230

170

199

219

TS1

16.2

FAQ

1. How to extend the life of a SMF battery?

In order to increase the life of battery, it is necessary to monitor the battery performance constantly. Here are some tips to optimize the battery performance.
1. The SMF battery should be placed in well ventilated area to avoid high temperature environment. With each 10 degree rise in air temperature, the float life reduces to half. If the battery is installed in equipment, it is necessary to isolate it from heat generating components like transformer.
2. In order to prevent deep discharge, it is necessary to set the cut off voltage to 11.5 volts in 12 volt battery and 4.5 in 6 volt battery.
3. It is necessary to prevent no load battery drain. The additional components of the equipment such as sensors, displays and indicators consume power in the no load condition. So if the equipment is not provided with automatic charging, this power loss leads to deep discharge.

4. Boost cum float charging is suitable for SMF battery. If the power failure is frequent, the battery should be charged immediately to acquire full charge before the next power failure.

5. If there is any problem such as low backup time, battery heating, low terminal voltage even after continuous charging develops, the battery should be attended immediately.

6. If the equipment is not using for long time, it should be charged once in every week. If the battery is allowed to charge and discharge frequently, its life can be extended to 3-5 years.

2. What’s the SMF Battery?

Sealed Maintenance Free batteries are widely used where minimal maintenance and space requirements are the main considerations. In UPS systems, it is used because of its maintenance free and eco friendly features. SMF batteries do not require water and acid top up and are totally maintenance free. There is no water loss during the charge- discharge cycle and the battery works on the oxygen recombination principle. SMF battery is also called as Valve Regulated Lead Acid or VRLA battery.
