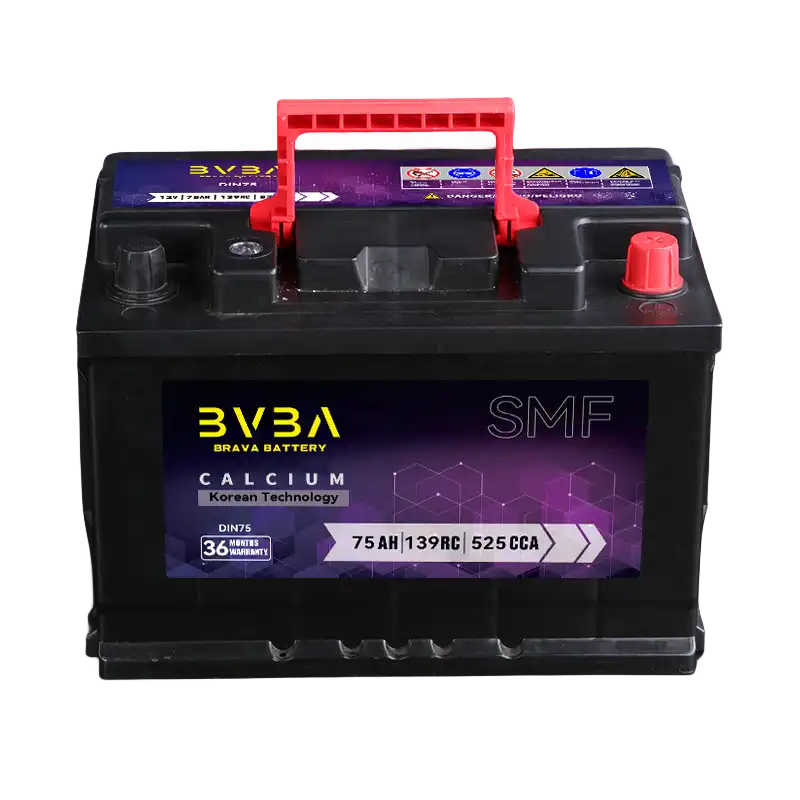

DIN75 (57540) 12V75AH DIN SMF CAR Battery

Product Description

Model: DIN75
BRAVA DIN75 (57540, 6-QW-75L-C) DIN series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under DIN technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Voltage : 12v
Capacity : 75Ah
Size : 274*174*190*190mm
Weight : 18.0kg
Terminal : 1

Tags:

Model

DIN75 (57540)

Nominal Voltage

12V

Nominal Capacity(20HR)

75Ah

Dimension

Length

274±2mm(10.79inches)

Width

174±2mm(6.85inches)

Container Height

190±2mm(7.48inches)

Total Height(with Terminal)

190±2mm(7.48inches)

Weight With Acid

Approx 18.0Kg(39.7lbs)

Acid

1.280±0.015g/cm (25ºC)

Standard Terminal

Cell layout

Hold-Down

B13

Case

Black-Material (PP)

Cover

Black-Material (PP)

Handle

Black-Material (PP)

Rated Capacity

@20 hour rate(1.8A)

75Ah

Reserve Capacity (RC)

[email protected]

125min

Cold Cranking Amps(CCA)

@0 ºF (-18 ºC)

625A(EN)

Terminal Type

Positive

Negative

19.5

17.9

Wet Starter SMF Battery DIN Standard Series

Group No.	Type	Volt.	C20	RC	CCA(DIN)	Overall Dimensions(mm)	Cell	Terminal	Hold Down	Handles	Wet Weight
(V)	(Ah)	(Min)	(-18℃)	L	W	H	TH	Layout	(Kg)
LBN3	56420	12	64	106	373	276	174	174	174	0	1	B13	TS1	16.2
57113	12	68	115	393	276	174	174	174	0	1	B13	TS1	16.7
LN3	56618	12	66	110	367	274	174	190	190	0	1	B13	TS3	16.8
57219	12	72	122	407	274	174	190	190	1	1	B13	TS3	17.5
57220	12	72	122	407	274	174	190	190	0	1	B13	TS3	17.5
57412	12	75	125	427	274	174	190	190	0	1	B13	TS3	18
57540	12	75	125	427	274	174	190	190	0	1	B13	TS3	18

Group
No.

Type

Volt.

C20

CCA(DIN)

Overall Dimensions(mm)

Cell

Terminal

Hold
Down

Handles

Wet
Weight

(V)

(Ah)

(Min)

(-18℃)

Layout

(Kg)

LBN3

56420

106

373

276

174

B13

TS1

16.2

57113

115

393

276

174

B13

TS1

16.7

LN3

56618

110

367

274

174

190

B13

TS3

16.8

57219

122

407

274

174

190

B13

TS3

17.5

57220

122

407

274

174

190

B13

TS3

17.5

57412

125

427

274

174

190

B13

TS3

57540

125

427

274

174

190

B13

TS3

FAQ

1. How to extend the life of a SMF battery?

In order to increase the life of battery, it is necessary to monitor the battery performance constantly. Here are some tips to optimize the battery performance.
1. The SMF battery should be placed in well ventilated area to avoid high temperature environment. With each 10 degree rise in air temperature, the float life reduces to half. If the battery is installed in equipment, it is necessary to isolate it from heat generating components like transformer.
2. In order to prevent deep discharge, it is necessary to set the cut off voltage to 11.5 volts in 12 volt battery and 4.5 in 6 volt battery.
3. It is necessary to prevent no load battery drain. The additional components of the equipment such as sensors, displays and indicators consume power in the no load condition. So if the equipment is not provided with automatic charging, this power loss leads to deep discharge.

4. Boost cum float charging is suitable for SMF battery. If the power failure is frequent, the battery should be charged immediately to acquire full charge before the next power failure.

5. If there is any problem such as low backup time, battery heating, low terminal voltage even after continuous charging develops, the battery should be attended immediately.

6. If the equipment is not using for long time, it should be charged once in every week. If the battery is allowed to charge and discharge frequently, its life can be extended to 3-5 years.

2. What’s the SMF Battery?

Sealed Maintenance Free batteries are widely used where minimal maintenance and space requirements are the main considerations. In UPS systems, it is used because of its maintenance free and eco friendly features. SMF batteries do not require water and acid top up and are totally maintenance free. There is no water loss during the charge- discharge cycle and the battery works on the oxygen recombination principle. SMF battery is also called as Valve Regulated Lead Acid or VRLA battery.
