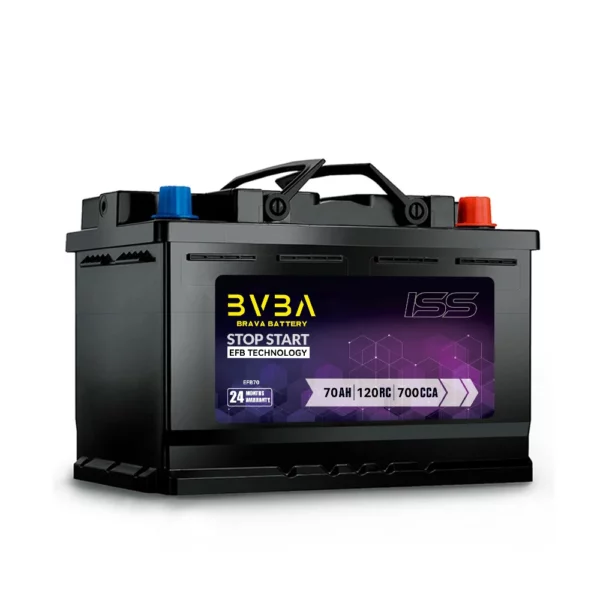

EFB70 H6 L3 12V70AH EFB START-STOP CAR Battery

Product Description

Model: EFB70
BRAVA EFB70 H6 L3 12V70AH EFB series provide High cranking amperage, Extreme charge and discharge performance, Low self-discharge, Unique design to give very good vibration resistance, Excellent DCA balanced with reasonable water consumption, Optimized active material design for longer PSoC and deep cycle life, Super strong grid plate and patent alloy for better life under high temperature.

Voltage : 12v
Capacity : 70Ah
Size : 278*174*190*190mm
Weight : 20.0kg
Terminal : 1

Tags:


Share This Page

EFB70 Physical Specification (mm)

Model EFB70 L3
Nominal Voltage 12V
Nominal Capacity(20HR) 70Ah
Dimension Length 278±2mm(10.94inches)
Width 175±2mm(6.89inches)
Container Height 190±2mm(7.48inches)
Total Height(with Terminal) 190±2mm(7.48inches)
Weight With Acid Approx 20.0Kg(44.1lbs)
Acid 1.280±0.015g/cm (25ºC)
Standard Terminal 1
Cell layout 0
Hold-Down B13
Case Black-Material (PP)
Cover Black-Material (PP)
Handle Black-Material (PP)

Electrical Specification

Rated Capacity @20 hour rate(3A) 70Ah
Reserve Capacity (RC) 120min
Cold Cranking Amps(CCA) @0 ºF (-18 ºC) 700A

Standard Terminal (mm)

Terminal Type D
Positive Negative
1 19.5 17.9
EFB70 L3 START STOP BATTERY LAYOUT
EFB70 L3 START STOP BATTERY LAYOUT
EFB70 L3 START STOP BATTERY DISCHARGE CHARACTERISTICS
EFB70 L3 START STOP BATTERY DISCHARGE CHARACTERISTICS
EFB70 L3 START STOP BATTERY DOS CHARACTERISTICS
EFB70 L3 START STOP BATTERY DOS CHARACTERISTICS

FAQ

1. What is an EFB car battery?

An EFB car battery is an enhanced flooded battery, which can also be used in cars that feature start and stop technology. It is considered as an entry level battery for use in cars with this technology. EFB car battery is wet-filled and similar to standard flooded battery, but there are differences that give EFB battery improved charge acceptance and enhanced cycling abilities. It means the battery recovers more quickly, as its application needs to handle heavy-duty, cyclic, start and stop applications. EFB car battery is an enhanced version of standard wet-flooded technology. The primary benefits of EFB technology are greater cyclic durability and improved charge acceptance when operating in a reduced state of charge, especially of stat and stop applications.

2. EFB Batteries’ benefits

EFB batteries provide a variety of advantages over AGM batteries. Their longer cycle life is their greatest benefit. Compared to an AGM battery, an EFB battery can endure more charge and discharge cycles before it approaches the end of its usable life.

EFBs have the additional benefit of being able to discharge more fully than AGMs in high-vibration applications. Because they will suffer a lot of shaking while operating, they are more suited for vehicles like motorcyclists.
