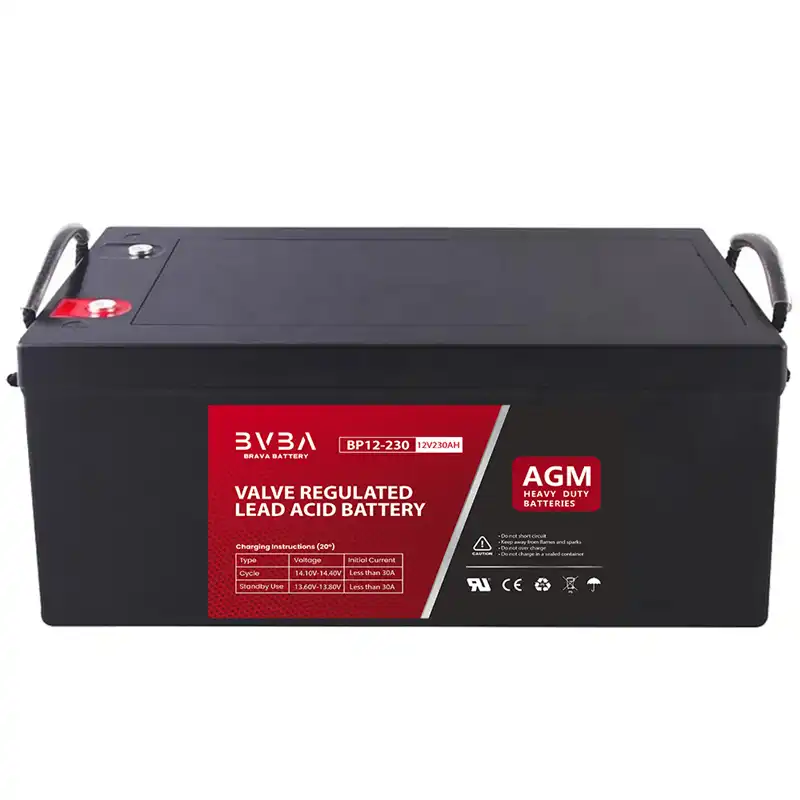

BP12-230 12V230Ah AGM Battery || Replacement cp122300

BP12-230 12v230Ah AGM battery General Features & benefits:

Higher voltage output – AGM batteries provide more electrical energy than flooded batteries, making it easier to start vehicle engines and providing additional power for technology such as touchscreens, backup cameras and fuel-saving start-stop systems
Faster recharge rates – AGM batteries recharge up to five times faster than a flooded battery.
Longer lifespans – How long do AGM batteries last? AGM batteries can last up to two to three times longer than flooded batteries. Their long lifespans can be cost-effective in the long run for consumers.
Slower discharge rates – An AGM battery holds its charge longer when it’s not being used and is more likely to be recovered if it becomes completely drained.
Spill-proof – Because the electrolyte is held in place by the plate separators, AGM batteries are spill-proof. This allows you to mount an AGM battery in a variety of positions that aren’t possible with a flooded option.
Weather resistance – AGM batteries do a much better job of standing up to the negative impact of extreme cold and heat.
Vibration resistance – AGM batteries are more resistant to vibration, making them ideal for boats and personal watercraft.

Product Application

alarm systems,
UPS power supplies,
cash registers,
emergency lighting.
cash registers,
wheelchairs and golf carts,
mowers,
toys,
cleaning machines.
replacement cp122300 PS-122300 SP12-230 ES230-12

|AGM Battery application|

Standards & Certifications

Compliance with IEC 60896 standards, EU Battery Directive
UL, CE Certified
Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

12v230Ah AGM Battery Specifications

Rated Voltage		12V
Nominal Capacity	230.0Ah	(C10 ,1.75V/cell)
Dimension	Length	521±2mm ( 20.50 inches)
	Width	269±1mm (10.60 inches)
	Container Height	204±1mm (8.03 inches)
	Total Height	209±1mm (8.23 inches)
Weight		Approx 67.0 Kg (147.7 lbs)
Terminal		M5
Container Material		ABS
Rated Capacity(25℃)	244.0 Ah	(20hr, 1.75V/cell)
	230.0 Ah	(10hr,1.75V/cell)
	200.5 Ah	(5hr,1.75V/cell)
	277.9 Ah	(3hr,1.75V/cell)
		(1hr,1.60V/cell)
Max. Discharge Current		2300A (5s)
Internal Resistance(25℃)		Approx 3.6mΩ
Operating Temp. Range	Discharge	-15～50℃ (5～122℉)
	Charge	-20～40℃ (-4～104℉)
	Storage	-15～40℃ (5～104℉)
Nominal Operating Temp.Range		25±3℃ (77±5℉ )
Cycle Use	Voltage 14.6V~14.8V at 25℃ (77℉)Temp. Coefficient -3mV/ ℃
Standby Use	Voltage 13.6V~13.8V at 25℃ (77℉)Temp. Coefficient -4mV/℃
Effect of temp. to Capacity	40℃ (104℉)	103%
	25℃ ( 77℉)	100%
	0℃ ( 32℉)	86%
Self Discharge	BP series batteries may be stored for up to 6 months at 25℃(77℉) and then a freshening charge is required. For higher temperatures the time interval will be shorter

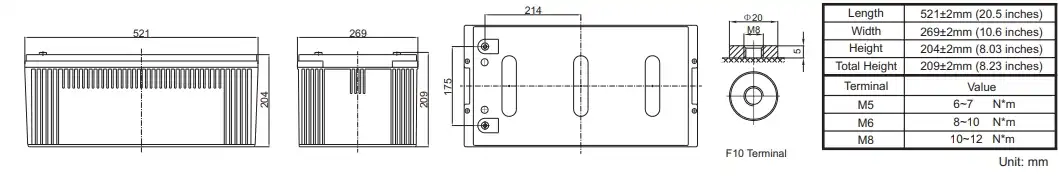

Battery Layout

12v230Ah Battery Charging/Discharge Curve

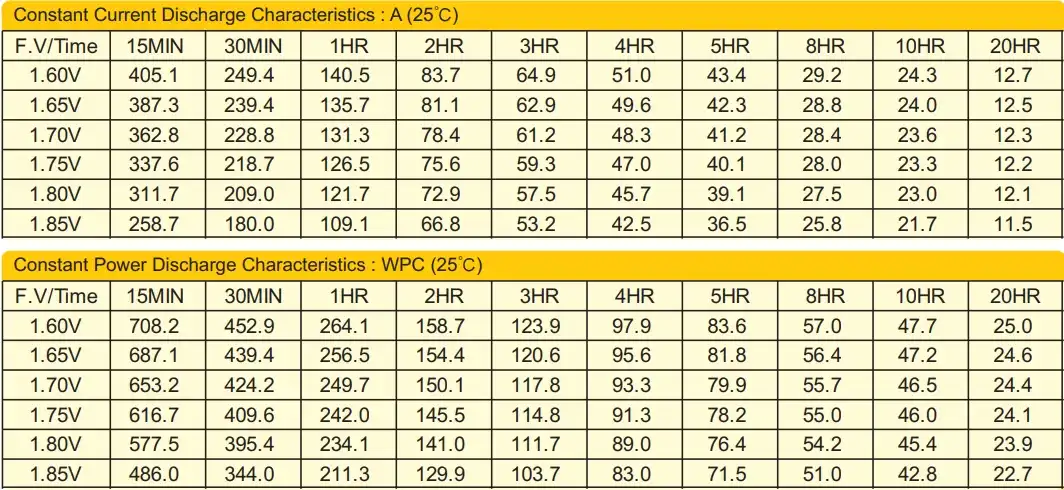

Battery Discharge Characteristics

Q&A

What is the difference between 12V 7AH Battery and 12V 12AH Battery?

Both are giving the data about storage capacity of a battery. For Ex. 12V 7AH Battery will run 7 hours if you are driving the load of 1Amp continuously. But 12 12AH Battery will run 12 hours if you are driving the load of 1Amp continuously.

Can you use a 12V 7ah battery to replace a 12V 5ah battery?

Yes, both batteries perform the same, but the 7ah battery holds more charge.

Can you use a 12V 7AH charger to charge a 12V230AH battery?

Yes it will work quite well.

How long does a 12v 7ah 20hr battery last?

Depends on the current draw of what you hook it up to. At a draw of 7 amps (80 watts) it’ll last for one hour. At a draw of 1 amp(12 watts) it’ll last for 7 hours, ASO.

What happens if you place 12v 80ah in the place of 12v 7ah?

the 80ah battery will give out power for longer without being charged in the case of a car it means it would take longer before the batery would run flat from leaving something switched on

Can you use a 12V 7Ah charger to charge a 12V60Ah battery?

Yes, the amp hour rating gives you an idea of the capacity of the battery and charger. The charger and battery need to have the same voltages. i.e. dont try to charge a 6v battery with a 12 v charger. The battery will be charged until it is full.

How long time will be taken by the 12V 7Ah charger to charge a 12V230Ah battery?

A charger designed for a 12 volt battery should not be used to charge an 8.4V battery. It is likely to damage the battery and in the worst case can cause a fire. There are some chargers that can be used with a variety of battery voltages and chemistries but unless you are certain that the charger is safe and effective on a different battery voltage, assume that it cannot be used.
