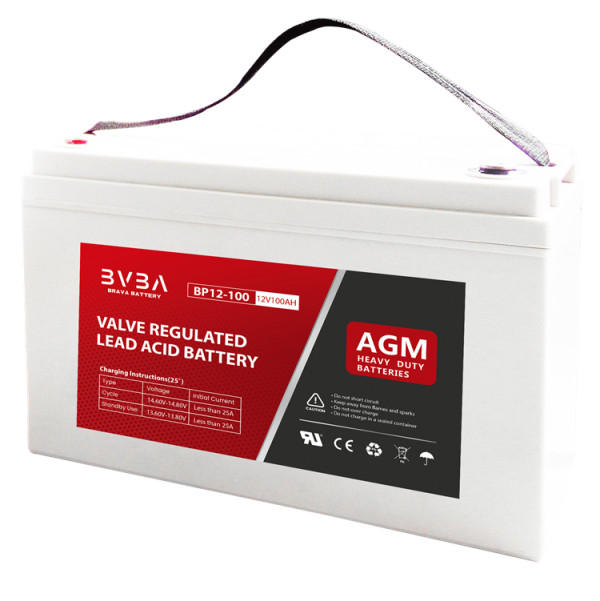

BP12-100 12V100Ah AGM Battery || Replacement UB121000 RS-AGM12100

Product Description

Model: BP12-100
BRAVA 12V 100Ah VRLA SLA batteries are superior high quality, high performance, multi-purpose batteries designed to provide dependable primary and back-up power in domestic and commercial applications. Valve Regulated Lead Acid.

Voltage : 12v
Capacity : 100Ah
Size : 328*173*216*223mm
Weight : 28.5kg
Terminal : M8

Tags

Share This Page

agm battery in mowers

BP12-100 AGM battery General Features & benefits:

  • Higher voltage output – AGM batteries provide more electrical energy than flooded batteries, making it easier to start vehicle engines and providing additional power for technology such as touchscreens, backup cameras and fuel-saving start-stop systems
  • Faster recharge rates – AGM batteries recharge up to five times faster than a flooded battery.
  • Longer lifespans – How long do AGM batteries last? AGM batteries can last up to two to three times longer than flooded batteries. Their long lifespans can be cost-effective in the long run for consumers.
  • Slower discharge rates – An AGM battery holds its charge longer when it’s not being used and is more likely to be recovered if it becomes completely drained.
  • Spill-proof – Because the electrolyte is held in place by the plate separators, AGM batteries are spill-proof. This allows you to mount an AGM battery in a variety of positions that aren’t possible with a flooded option.
  • Weather resistance – AGM batteries do a much better job of standing up to the negative impact of extreme cold and heat.
  • Vibration resistance – AGM batteries are more resistant to vibration, making them ideal for boats and personal watercraft.

Product Application

  • alarm systems,
  • UPS power supplies,
  • cash registers,
  • emergency lighting.
  • cash registers,
  • wheelchairs and golf carts,
  • mowers,
  • toys,
  • cleaning machines.
  • replacement UB121000 RS-AGM12100

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

AGM Battery Topic: | Feature | | Applications | | Related Products |




AGM Battery Specifications

Rated Voltage
12V
Terminal
Bolt M8
Container Material
ABS
Max. Discharge Current
1000A (5s)
Internal Resistance(25ºC)
Approx 5.5mΩ
Operating Temp. Range Discharge
-15~50ºC (5~122ºF)
Charge
-20~40ºC (-4~104ºF)
Storage
-15~40ºC (5~104ºF)
Nominal Operating Temp.Range
25±3ºC (77±5ºF )
Cycle Use Initial Charging Current less than 30A. Voltage 14.6V ~14.8V at 250 C(77ºF)Temp. Coefficient 30mV/ ºC
Standby Use

Initial Charging Current less than 30A. Voltage
13.6V~13.8V at 250 C(77ºF)Temp. Coefficient -20mV/ºC

Effect of temp. to Capacity 400 C (104ºF)
103%
250 C ( 77ºF)
100%
00 C ( 32ºF)
86%
Self Discharge

BP series batteries may be stored for up to 6 months
at 250 C(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter

AGM Battery Structure Diagram

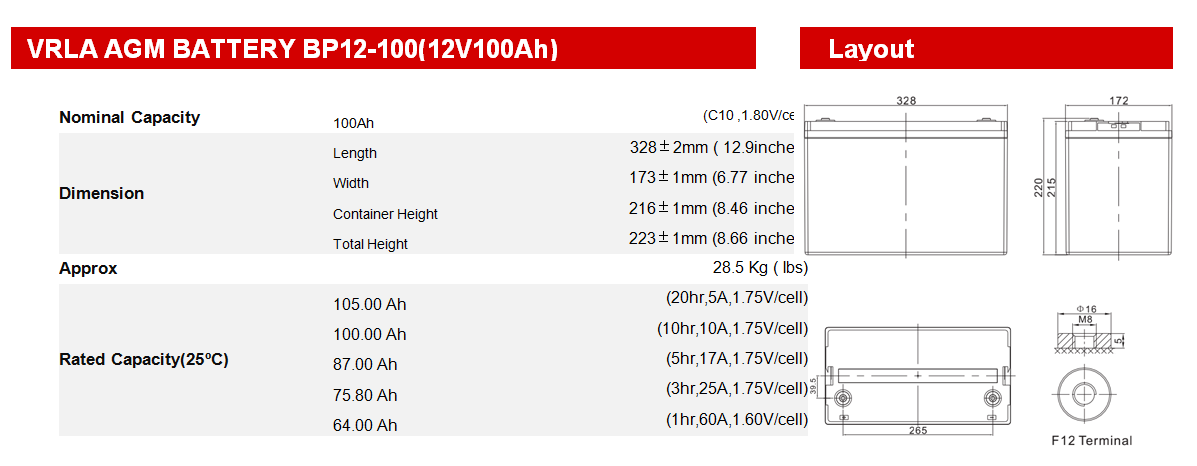

bp12-100 layout

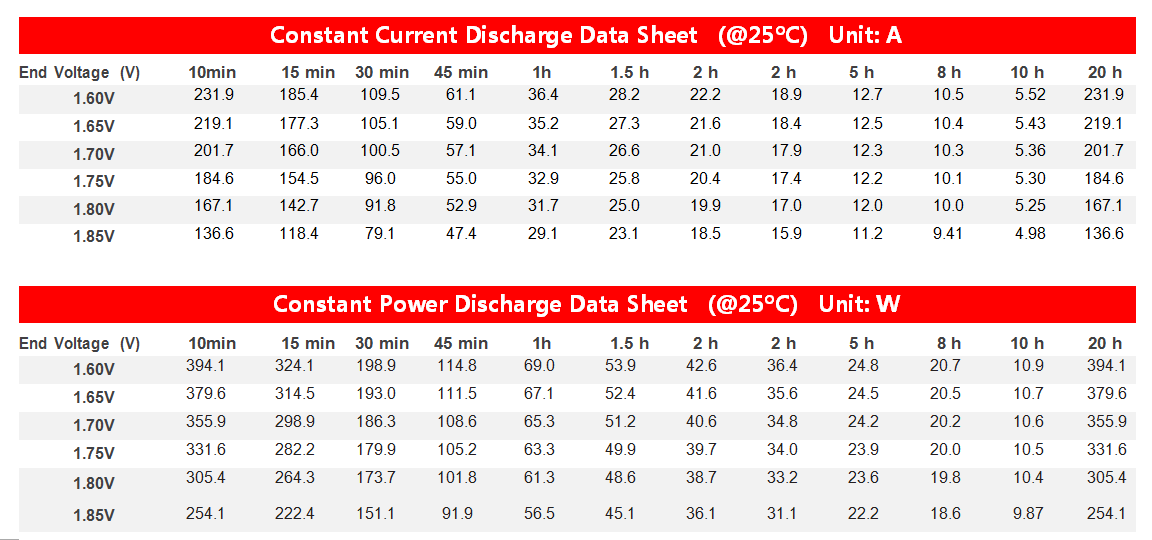

bp12-100 discharging data



Related products: | BP12-120 | | BP12-150 |


Refer to:Lead-acid Battery |
