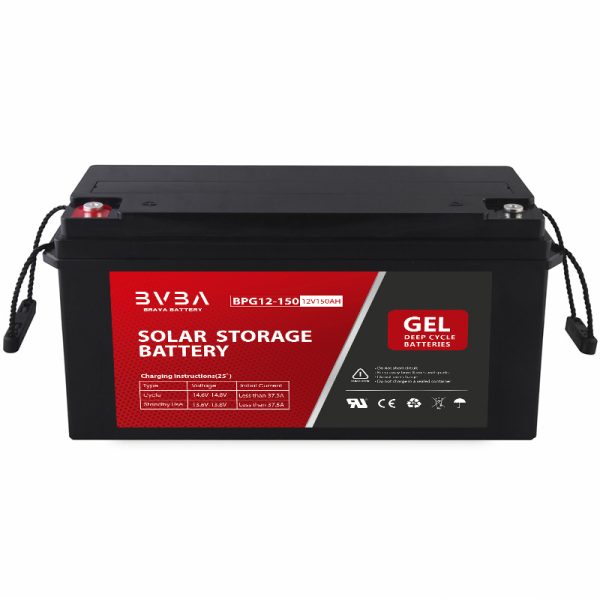

12V150Ah deep cycle gel battery

Deep Cycle GEL BATTERY General Features & benefits:

  • 15-18 years design life(25℃)
  • Best suited for Deep cycle applications and their life is generally in the 500 to 5000 cycles range
  • Spill proof
  • Maintenance free
  • Lowest cost-per-month (cost / months of life)
  • Lowest cost-per-cycle (cost / life cycles)
  • Adopt advanced GEL technology
  • High purity raw material
  • Thick plate design
  • Special grid alloy and paste formula
  • High-temperature curing technology.

Tag in this article:#GEL battery #Deep Cycle battery

Share This Page

FREE SAMPLE

Welcome importers, wholesalers and distributors require free sample



Solar panel battery system

Product Applications

  • All purpose
  • Medical equipment
  • Mobility,Electric vehicles
  • Data Center
  • Transport Telecommunication
  • Sports & Recreation
  • UPS, backup power
  • Lighting Utility
  • Pumps systems
  • Solar lighting systems
  • Telecom stations and power stations
  • Solar/wind energy storage systems
  • replacement PSL-BTP-121000 RBT100LFP12-BT-US

Tips: more detail application,for gel battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
  • Compliance with IEC 60896 standards,certified production facilities

BPG12V150Ah Deep Cycles GEL battery  Specifications

Rated Voltage
12V
Dimension Length
483±2mm (19.0 inches)
Width
170±2mm (6.69 inches)
Container Height
241±2mm (9.49 inches)
Total Height
241±2mm (9.49 inches)
Nominal Capacity 150Ah
C20,1.75V
Rated Capacity(25ºC) 150.00Ah
(20hr,1.75v/cell)
132.00Ah
(10hr,1.75v/cell)
115.50Ah
(5hr,1.75v/cell)
102.30Ah
(3hr,1.75v/cell)
Weight
Approx.45kg(99.2lbs)
Terminal
F12(M8)
Container Material
ABS
Max. Discharge Current
1500A (5s)
Internal Resistance(25ºC)
Approx 6mΩ
Operating Temp. Range Discharge
-40~60ºC (-4~140ºF)
Charge
-20~50ºC (14~122ºF)
Storage
-40~60ºC (-4~140ºF)
Nominal Operating Temp.Range
25±5ºC (77±5ºF )
Cycle Use Initial Charging Current less than 26.4A. Voltage 14.2V ~14.4V at 25ºC (77ºF)Temp. Coefficient -4mV/ ºC
Standby Use

Initial Charging Current less than 26.4A. Voltage
13.6V~13.8V at 25ºC(77ºF)Temp. Coefficient -3mV/ºC

Effect of temp. to Capacity 40ºC (104ºF)
103%
25ºC ( 77ºF)
100%
0ºC ( 32ºF)
86%
Self Discharge

BPG series batteries may be stored for up to 6 months
at 25ºC(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter

12v150Ah Battery Charging/Discharge Curve

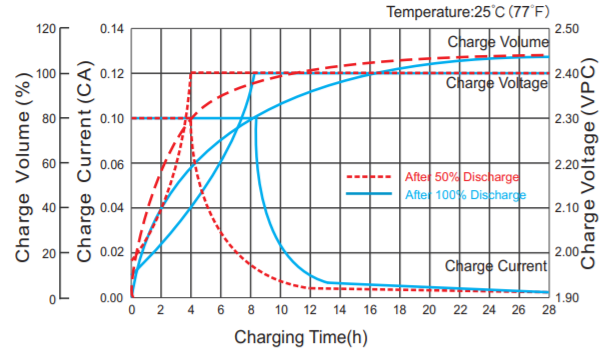

Charge Characteristics

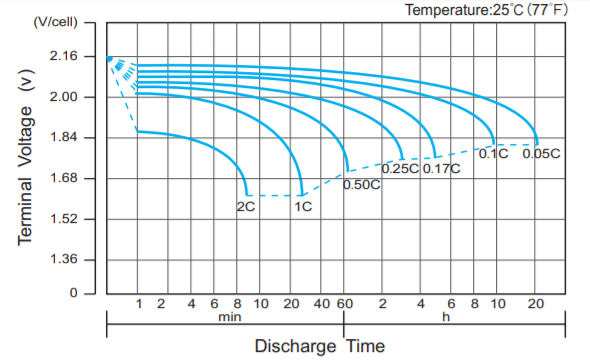

Discharge Characteristic

BPG12-100-charging

BPG12-100-Discharge

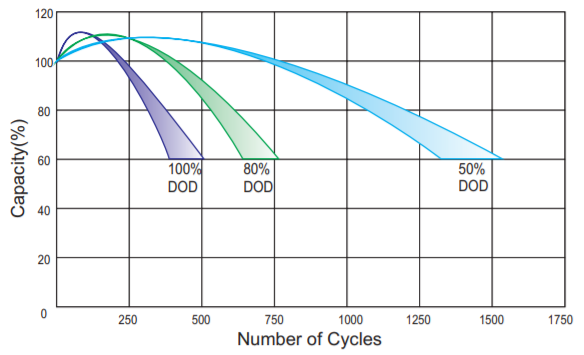

Cycle Life in Relation to Depth of Discharge

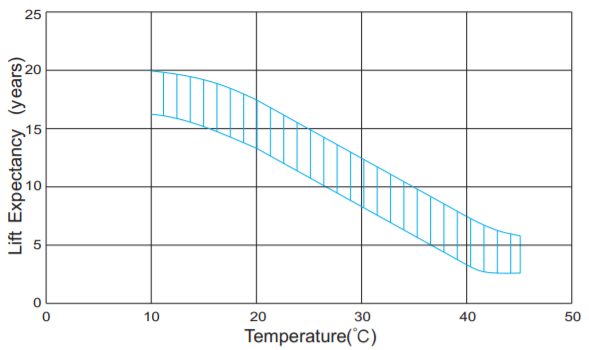

Temperature vs Float Life
BPG12-100-cycles
BPG12-100-lift-expactancy

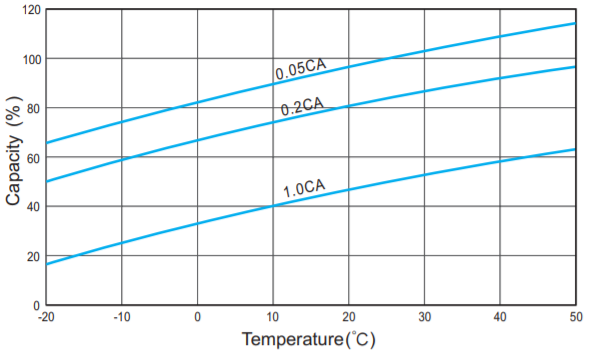

Capacity Curve At Different Temperature

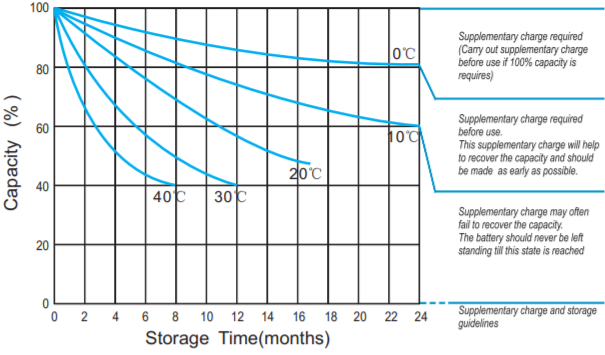

Self Discharge Characteristics
BPG12-100-capacity curve
BPG12-100-storage curve

12v150Ah Battery Structure Diagram

12v150ah gel battery layout
12v150ah gel battery layout

Constant Current Discharge Data Sheet (@25ºC) Unit: A

F.V/Time 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR
1.60V 245.6 199.2 130.7 81.5 49.8 37.3 29.8 25.0 16.9 13.9 7.81
1.65V 232.1 190.4 125.5 78.7 48.2 36.2 29.0 24.3 16.7 13.8 7.68
1.70V 213.6 178.3 119.9 76.1 46.6 35.2 28.2 23.7 16.4 13.5 7.59
1.75V 195.6 166.0 114.6 73.3 45.0 34.1 27.5 23.1 16.2 13.4 7.50
1.80V 177.0 153.2 109.5 70.5 43.4 33.1 26.7 22.5 15.9 13.2 7.42
1.85V 144.7 127.2 94.3 63.2 39.7 30.6 24.8 21.0 15.0 12.4 7.05

Constant Power Discharge Data Sheet (@25ºC) Unit: W

F.V/Time 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR
1.60V 474.4 395.7 269.7 173.9 107.2 81.0 65.0 54.7 37.5 31.1 17.5
1.65V 451.4 380.3 261.2 169.2 104.3 79.0 63.4 53.5 37.1 30.7 17.2
1.70V 428.4 364.9 252.6 164.5 101.4 77.0 61.9 52.3 36.6 30.3 17.0
1.75V 399.2 344.5 243.9 159.4 98.3 75.0 60.6 51.1 36.2 30.0 16.8
1.80V 367.6 322.6 235.5 154.2 95.3 73.0 59.1 50.0 35.7 29.6 16.7
1.85V 305.8 271.5 204.8 139.2 87.8 67.8 55.1 46.8 33.6 27.9 15.9
