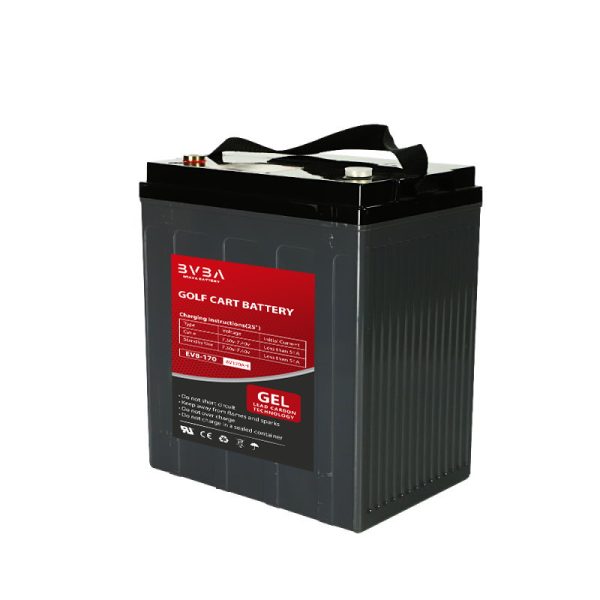

EV8-170(8V170Ah) Golf trolleys GEL Battery

Product Application

• alarm systems,
• UPS power supplies,
• cash registers,
• emergency lighting.
• cash registers,
• wheelchairs and golf carts,
• mowers,
• toys,
• cleaning machines.

Standards & Certifications

• Compliance with IEC 60896 standards, EU Battery Directive
• UL, CE Certified
• Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

EV8-170 Golf trolleys GEL Battery Specifications

Rated Voltage		8V
Nominal Capacity	170.0Ah	(C20 ,1.80V/cell)
Dimension	Length	260±2mm ( 10.2 inches)
	Width	182±1mm (7.17 inches)
	Container Height	295±1mm (11.6 inches)
	Total Height	314±1mm (12.4 inches)
Weight		Approx 34.5 Kg (76.0 lbs)
Terminal		F14(M8)
Container Material		ABS
Rated Capacity(25℃)	180.2 Ah	(20hr, cell)
	170.0 Ah	(10hr, cell)
	148.5 Ah	(5hr, cell)
	131.7 Ah	(3hr, cell)
Max. Discharge Current		1700A (5s)
Internal Resistance(25℃)		Approx 3.2mΩ
Operating Temp. Range	Discharge	-15～50℃ (5～122℉)
	Charge	-20～40℃ (-4～104℉)
	Storage	-15～40℃ (5～104℉)
Nominal Operating Temp.Range		25±3℃ (77±5℉ )
Cycle Use	Initial Charging Current less than 51A. Voltage 9.73~9.87V at 25ºC (77ºF)Temp. Coefficient -4mV/ ºC
Standby Use	Initial Charging Current less than 51A. Voltage 9.07V~9.20V at 25ºC(77ºF)Temp. Coefficient -3mV/ºC
Effect of temp. to Capacity	40℃ (104℉)	103%
	25℃ ( 77℉)	100%
	0℃ ( 32℉)	86%
Self Discharge	EV series batteries may be stored for up to 6 months at 25℃(77℉) and then a freshening charge is required. For higher temperatures the time interval will be shorter

EV8-170 GEL Battery layout

EV8-170 GEL Battery Discharge data sheet

GEL Battery Charging/Discharge Curve

Charge Characteristics		Discharge Characteristic
Cycle Life in Relation to Depth of Discharge		Temperature vs Float Life
Capacity Curve At Different Temperature		Self Discharge Characteristics

ABOUT Electric Vehicle Battery

EV ( Electric Vehicle ) series is specially designed for frequent discharge deep cycle application. By using the specially designed active material, strong grids and thick plate construction, the EV series battery offers reliable performance in high load situations and could provide competitive cycle performance. It is suitable for Electric Vehicle and Golf cart, Floor Machines, Forklifts, Aerial lifts, Robotics, Marine, RV, Mobility and Medical Equipment, and most outdoor application.

Tips: more detail information, for acid battery。
