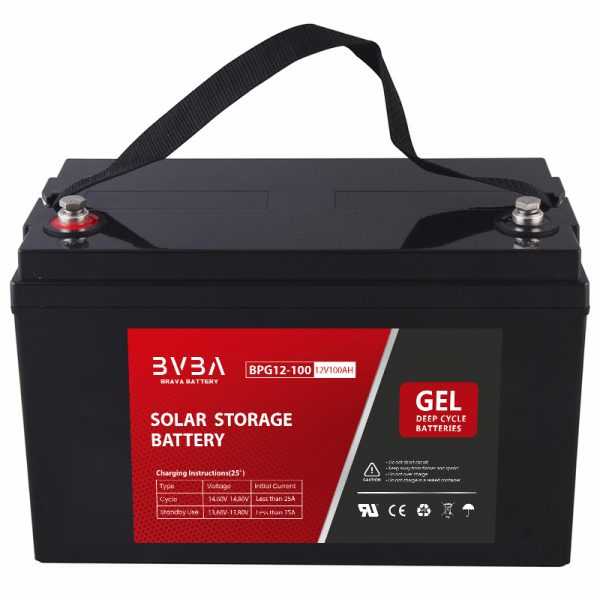

BPG12-100(12V100Ah) deep cycle gel battery

Deep Cycle GEL BATTERY General Features & benefits:

  • 15-18 years design life(25℃)
  • Best suited for Deep cycle applications and their life is generally in the 500 to 5000 cycles range
  • Spill proof
  • Maintenance free
  • Lowest cost-per-month (cost / months of life)
  • Lowest cost-per-cycle (cost / life cycles)
  • Adopt advanced GEL technology
  • High purity raw material
  • Thick plate design
  • Special grid alloy and paste formula
  • High-temperature curing technology.

Tag in this article:#GEL battery #Deep Cycle battery

Share This Page

FREE SAMPLE

Welcome importers, wholesalers and distributors require free sample



Solar panel battery system

Product Applications

  • All purpose
  • Medical equipment
  • Mobility,Electric vehicles
  • Data Center
  • Transport Telecommunication
  • Sports & Recreation
  • UPS, backup power
  • Lighting Utility
  • Pumps systems
  • Solar lighting systems
  • Telecom stations and power stations
  • Solar/wind energy storage systems
  • replacement PSL-BTP-121000 RBT100LFP12-BT-US

Tips: more detail application,for gel battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
  • Compliance with IEC 60896 standards,certified production facilities

12V100Ah Deep Cycles GEL battery  Specifications

Rated Voltage
12V
Terminal
F12(M8)
Container Material
ABS
Max. Discharge Current
1000A (5s)
Internal Resistance(25ºC)
Approx 7.5mΩ
Operating Temp. Range Discharge
-40~60ºC (-4~140ºF)
Charge
-20~50ºC (14~122ºF)
Storage
-40~60ºC (-4~140ºF)
Nominal Operating Temp.Range
25±5ºC (77±5ºF )
Cycle Use Initial Charging Current less than 26.4A. Voltage 14.2V ~14.4V at 25ºC (77ºF)Temp. Coefficient -4mV/ ºC
Standby Use

Initial Charging Current less than 26.4A. Voltage
13.6V~13.8V at 25ºC(77ºF)Temp. Coefficient -3mV/ºC

Effect of temp. to Capacity 40ºC (104ºF)
103%
25ºC ( 77ºF)
100%
0ºC ( 32ºF)
86%
Self Discharge

BP series batteries may be stored for up to 6 months
at 25ºC(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter



Charge Characteristics
Discharge Characteristic

BPG12-100-charging

BPG12-100-Discharge
Cycle Life in Relation to Depth of Discharge
Temperature vs Float Life
BPG12-100-cycles
BPG12-100-lift-expactancy
Capacity Curve At Different Temperature
Self Discharge Characteristics
BPG12-100-capacity curve
BPG12-100-storage curve

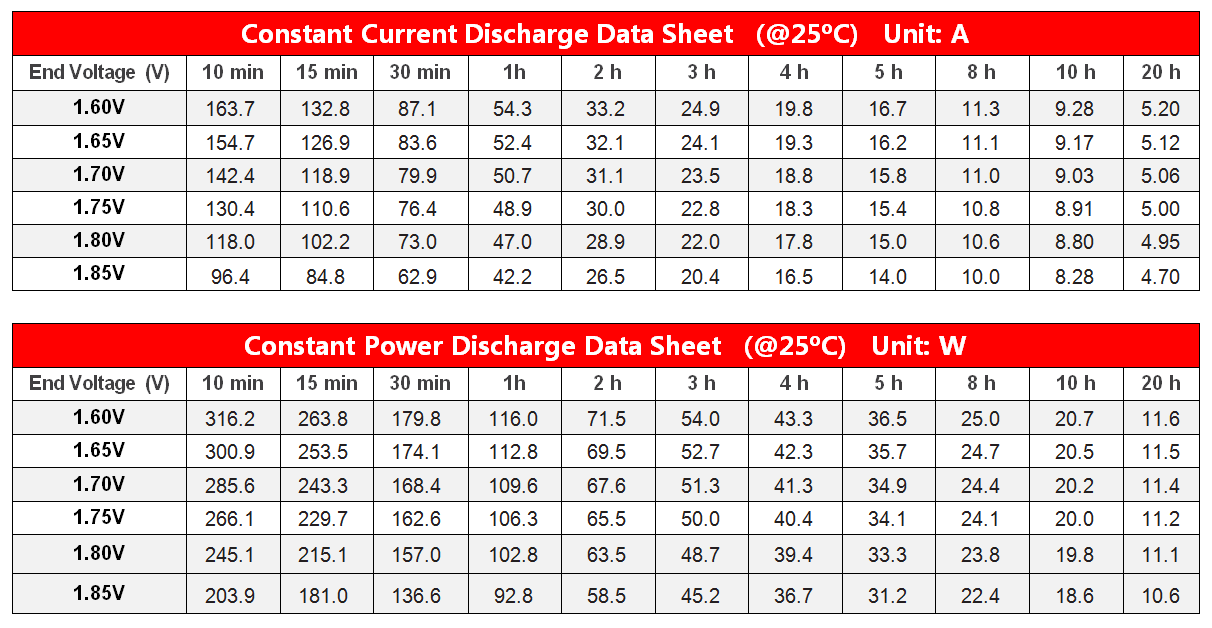

BPG12-100-layoutBPG12 100 datasheet
