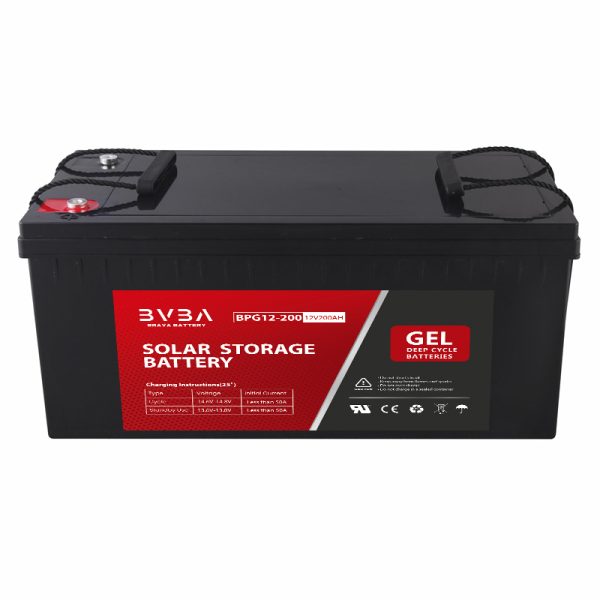

12V200Ah deep cycle gel battery

Deep Cycle GEL BATTERY General Features & benefits:

  • 15-18 years design life(25℃)
  • Best suited for Deep cycle applications and their life is generally in the 500 to 5000 cycles range
  • Spill proof
  • Maintenance free
  • Lowest cost-per-month (cost / months of life)
  • Lowest cost-per-cycle (cost / life cycles)
  • Adopt advanced GEL technology
  • High purity raw material
  • Thick plate design
  • Special grid alloy and paste formula
  • High-temperature curing technology.

Tag in this article:#GEL battery #Deep Cycle battery

Share This Page

FREE SAMPLE

Welcome importers, wholesalers and distributors require free sample



Solar panel battery system

Gel Battery Applications

  • All purpose
  • Medical equipment
  • Mobility,Electric vehicles
  • Data Center
  • Transport Telecommunication
  • Sports & Recreation
  • UPS, backup power
  • Lighting Utility
  • Pumps systems
  • Solar lighting systems
  • Telecom stations and power stations
  • Solar/wind energy storage systems
  • replacement PSL-BTP-121000 RBT100LFP12-BT-US

Tips: more detail application,for gel battery application.

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
  • Compliance with IEC 60896 standards,certified production facilities

BPG12V200Ah Deep Cycles GEL battery  Specifications

Rated Voltage
12V
Dimension Length
522±2mm (20.6 inches)
Width
240±2mm (9.45 inches)
Container Height
219±2mm (8.62 inches)
Total Height
224±2mm (8.82 inches)
Nominal Capacity 200Ah
C20,1.75V
Rated Capacity(25ºC) 200.00Ah
(20hr,1.75v/cell)
176.00Ah
(10hr,1.75v/cell)
154.00Ah
(5hr,1.75v/cell)
136.50Ah
(3hr,1.75v/cell)
Weight
Approx. 58kg(127.9lbs)
Terminal
F16(M8)
Container Material
ABS
Max. Discharge Current
2000A (5s)
Internal Resistance(25ºC)
Approx 5.2mΩ
Operating Temp. Range Discharge
-40~60ºC (-4~140ºF)
Charge
-20~50ºC (14~122ºF)
Storage
-40~60ºC (-4~140ºF)
Nominal Operating Temp.Range
25±5ºC (77±5ºF )
Cycle Use Initial Charging Current less than 40A. Voltage 14.2V ~14.4V at 25ºC (77ºF)Temp. Coefficient -4mV/ ºC
Standby Use

Initial Charging Current less than 40A. Voltage
13.6V~13.8V at 25ºC(77ºF)Temp. Coefficient -3mV/ºC

Effect of temp. to Capacity 40ºC (104ºF)
103%
25ºC ( 77ºF)
100%
0ºC ( 32ºF)
86%
Self Discharge

BPG series batteries may be stored for up to 6 months
at 25ºC(77ºF) and then a freshening charge is required.
For higher temperatures the time interval will be shorter

12v200Ah Battery Charging/Discharge Curve

Charge Characteristics
Discharge Characteristic

BPG12-100-charging

BPG12-100-Discharge
Cycle Life in Relation to Depth of Discharge
Temperature vs Float Life
BPG12-100-cycles
BPG12-100-lift-expactancy
Capacity Curve At Different Temperature
Self Discharge Characteristics
BPG12-100-capacity curve
BPG12-100-storage curve

12v200Ah Battery Structure Diagram

12v200 layout
12v200 layout

Constant Current Discharge Data Sheet (@25ºC) Unit: A

F.V/Time 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR
1.60V 327.4 265.5 174.2 108.6 66.4 49.7 39.7 33.3 22.5 18.6 10.4
1.65V 309.4 253.9 167.3 104.9 64.2 48.2 38.6 32.4 22.3 18.3 10.2
1.70V 284.9 237.8 159.9 101.5 62.1 46.9 37.6 31.6 21.9 18.1 10.1
1.75V 260.7 221.3 152.8 97.8 60.0 45.5 36.6 30.8 21.6 17.8 10.0
1.80V 236.0 204.3 146.1 94.0 57.8 44.1 35.6 30.0 21.2 17.6 9.90
1.85V 192.9 169.5 125.8 84.3 53.0 40.8 33.0 28.0 19.9 16.6 9.40

Constant Power Discharge Data Sheet (@25ºC) Unit: W

F.V/Time 10MIN 15MIN 30MIN 1HR 2HR 3HR 4HR 5HR 8HR 10HR 20HR
1.60V 632.5 527.5 359.6 231.9 142.9 108.0 86.6 72.9 50.0 41.5 23.3
1.65V 601.8 507.0 348.2 225.6 139.1 105.3 84.6 71.3 49.4 41.0 23.0
1.70V 571.1 486.5 336.8 219.3 135.2 102.7 82.6 69.7 48.8 40.5 22.7
1.75V 532.2 459.3 325.2 212.6 131.1 100.0 80.8 68.2 48.3 40.0 22.5
1.80V 490.2 430.1 314.0 205.6 127.0 97.3 78.7 66.7 47.6 39.5 22.3
1.85V 407.7 362.0 273.1 185.5 117.0 90.4 73.5 62.4 44.7 37.3 21.2
