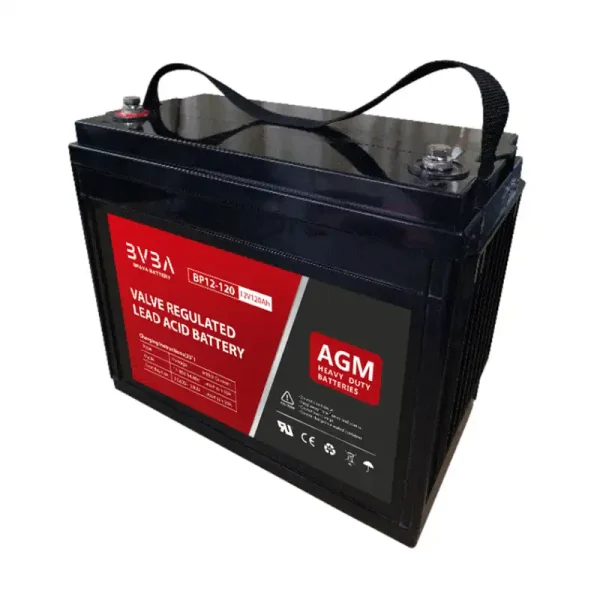

BP12-120 12V120Ah AGM Battery

Product Description

Model: BP12-120
BRAVA 12V 120Ah VRLA SLA batteries are superior high quality, high performance, multi-purpose batteries designed to provide dependable primary and back-up power in domestic and commercial applications. Valve Regulated Lead Acid.

Voltage : 12v
Capacity : 120Ah
Size : 341*172*281*287mm
Weight : 38.53kg
Terminal : M8

Tags:

Share This Page

12V120Ah AGM battery General Features & benefits:

Higher voltage output – AGM batteries provide more electrical energy than flooded batteries, making it easier to start vehicle engines and providing additional power for technology such as touchscreens, backup cameras and fuel-saving start-stop systems
Faster recharge rates – AGM batteries recharge up to five times faster than a flooded battery.
Longer lifespans – How long do AGM batteries last? AGM batteries can last up to two to three times longer than flooded batteries. Their long lifespans can be cost-effective in the long run for consumers.
Slower discharge rates – An AGM battery holds its charge longer when it’s not being used and is more likely to be recovered if it becomes completely drained.
Spill-proof – Because the electrolyte is held in place by the plate separators, AGM batteries are spill-proof. This allows you to mount an AGM battery in a variety of positions that aren’t possible with a flooded option.
Weather resistance – AGM batteries do a much better job of standing up to the negative impact of extreme cold and heat.
Vibration resistance – AGM batteries are more resistant to vibration, making them ideal for boats and personal watercraft.

Product Application

alarm systems,
UPS power supplies,
cash registers,
emergency lighting.
cash registers,
wheelchairs and golf carts,
mowers,
toys,
cleaning machines.
replacement 12v120Ah cp12120 PS-12120 SP12-120 ES120-12

Standards & Certifications

Compliance with IEC 60896 standards, EU Battery Directive
UL, CE Certified
Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

12v120Ah AGM Battery Specifications

Rated Voltage		12V
Nominal Capacity	121Ah	(C10 ,1.80V/cell)
Dimension	Length	341±2mm ( 13.64inches)
	Width	172±2mm (6.88 inches)
	Container Height	281±2mm (11.24 inches)
	Total Height	287±2mm (11.48 inches)
Weight		Approx.38.53 Kg (84.77 Ibs)
Terminal		F12( M8)
Container Material		ABS
Rated Capacity(25℃)	127.40 Ah	(20hr, 1.75V/cell)
	121.00 Ah	(10hr,1.75V/cell)
	103.00 Ah	(5hr,1.75V/cell)
	90.90 Ah	(3hr,1.75V/cell)
Max. Discharge Current		1200A (5s)
Internal Resistance(25℃)		Approx 3.5mΩ
Operating Temp. Range	Discharge	-15～50℃ (5～122℉)
	Charge	-20～40℃ (-4～104℉)
	Storage	-15～40℃ (5～104℉)
Nominal Operating Temp.Range		25±3℃ (77±5℉ )
Cycle Use	Initial Charging Current less than 36A. Voltage 14.1V~14.4V at 25℃ (77℉)Temp. Coefficient -4mV/℃
Standby Use	Initial Charging Current less than 36A. Voltage 13.6V~13.8V at 25 ℃ (77℉)Temp. Coefficient -3mV/℃
Effect of temp. to Capacity	40℃ (104℉)	103%
	25℃ ( 77℉)	100%
	0℃ ( 32℉)	86%
Self Discharge	BP series batteries may be stored for up to 6 months at 25℃(77℉) and then a freshening charge is required. For higher temperatures the time interval will be shorter

Battery Charging/Discharge Curve

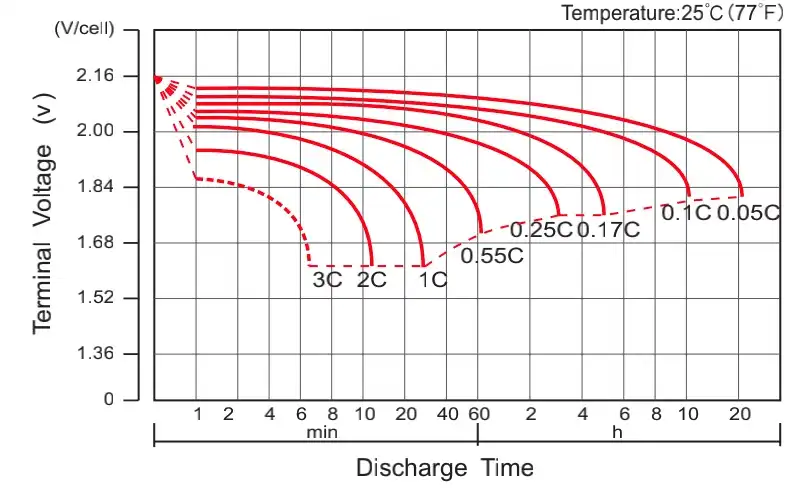

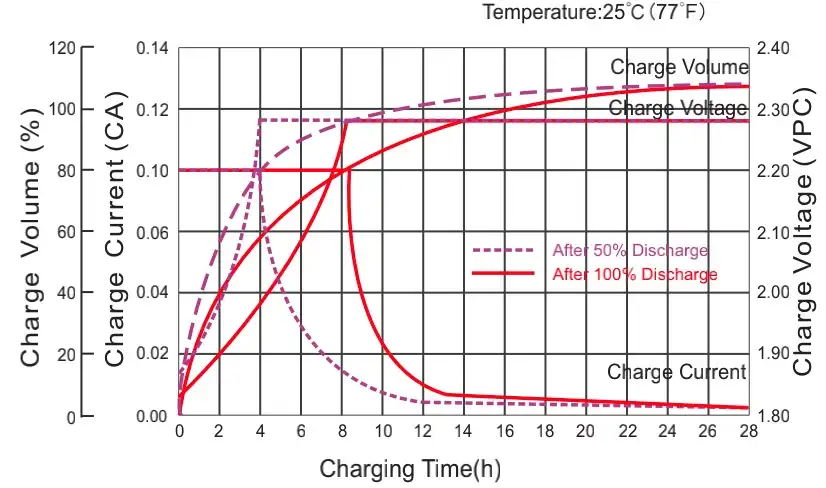

Charge Characteristics		Discharge Characteristic

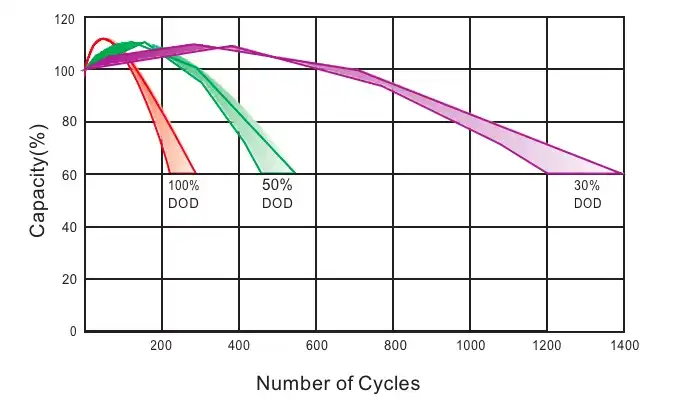

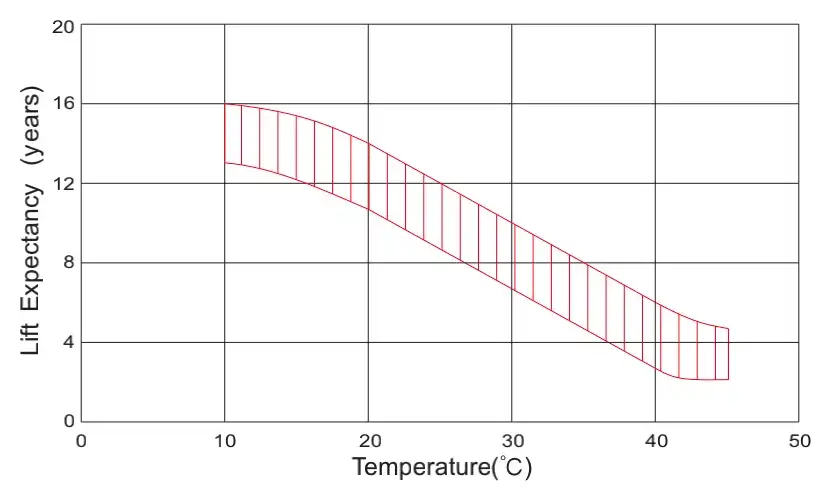

Cycle Life in Relation to Depth of Discharge		Temperature vs Float Life

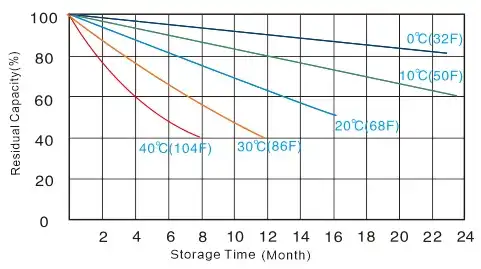

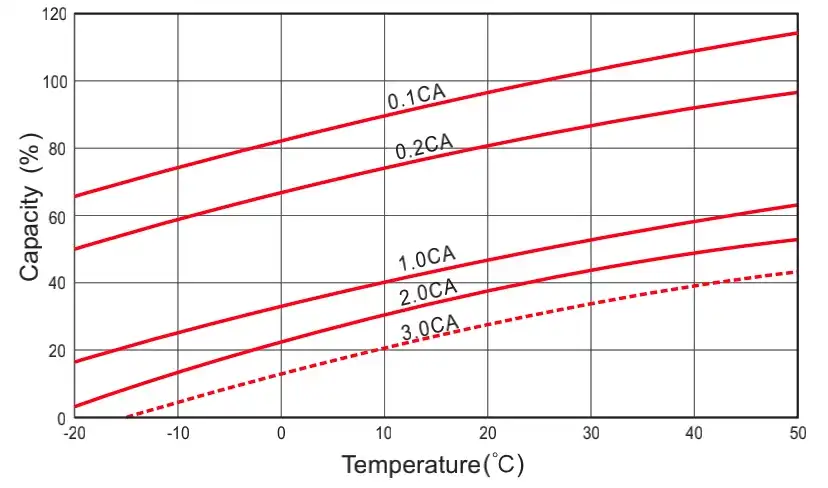

Capacity Curve At Different Temperature		Self Discharge Characteristics

Battery Structure Diagram

Constant Current Discharge Data Sheet (@25ºC) Unit: A

End Voltage(V)	10min	15min	30min	1h	1.5h	2h	3h	5h	8h	10h	20h
1.60V	295	233	131	77	61	51.2	32.3	22.0	15.0	12.6	6.57
1.65V	281	222	125	75	60	49.9	31.3	21.4	14.7	12.5	6.50
1.70V	268	211	119	73	58	48.7	30.3	20.9	14.5	12.4	6.44
1.75V	255	202	113	72	57	47.5	29.3	20.6	14.2	12.2	6.37
1.80V	242	192	108	70	56	46.4	28.3	19.9	13.9	12.1	6.31

Constant Power Discharge Data Sheet (@25ºC) Unit: W

End Voltage(V)	10min	15min	30min	1h	1.5h	2h	3h	5h	8h	10h	20h
1.60V	3151	2613	1687	984	717	536	400	259	196	151	81.3
1.65V	3002	2488	1607	960	699	523	391	253	192	150	80.5
1.70V	2858	2369	1530	936	683	510	381	246	188	148	79.8
1.75V	2722	2256	1457	913	666	498	372	240	184	147	79.0
1.80V	2593	2149	1388	891	649	486	363	234	181	145	78.2
