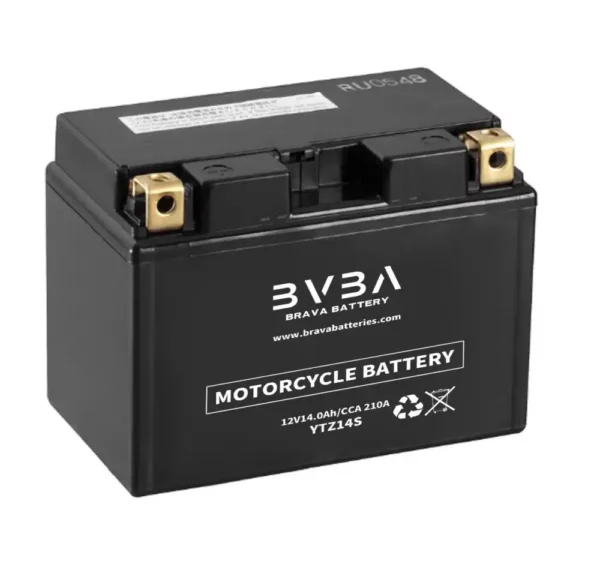

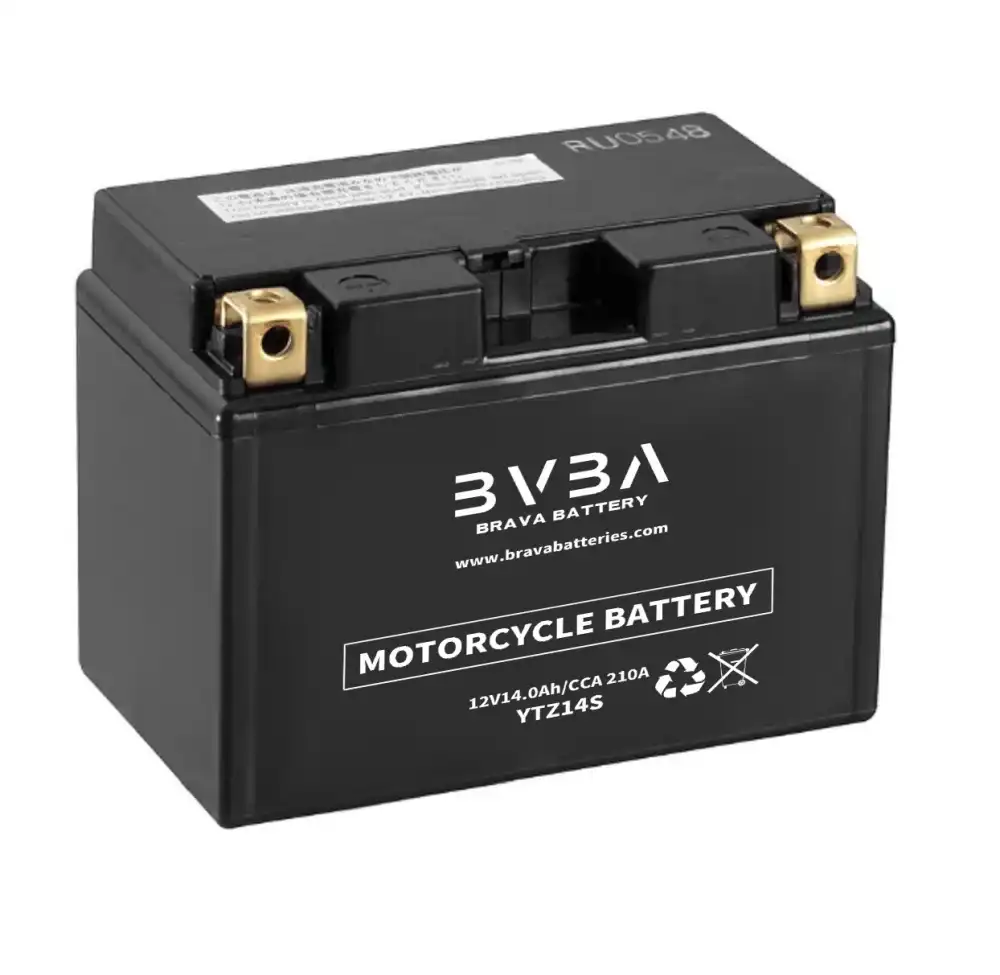

YTZ14S Battery

YTZ14S battery General Features & benefits.

Maintenance-free design
Sealing structure of ABS materials
Low self-discharge
High CCA and good starting performance: Up to 30% more CCA than standard AGM batteries despite being lighter & more compact.

Tags:

Share This Page

YTZ14S Battery Product Application

Motorcycle
ATV
Boats & RVs
Scooter
Winches
Replacement LTZ14S, KTZ14S, YTZ14S-BS, HPG14A4, LTZ14S
AGM battery factory in CN suitable for Volkswagen, Buick, Cadillac, Audi, Jaguar, Mercedes, Volvo, Chevrolet, Jeep, BMW, Land Rover, Hyundai and other models.

Standards & Certifications

Compliance with IEC 60896 standards, EU Battery Directive
UL, CE Certified
Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities

YTZ14S Battery Specifications

Model	YTZ14S
Rated Voltage	12V
Weight	Approx 4.2kg
Capacity	14.0Ah
Terminal	F
Container Material	Black PP
CCA	210A
Internal Resistance(25ºC)	Approx 12mΩ
Operating Temp. Range	Discharge	-40～60ºC (-4～140ºF)
	Charge	-20～50ºC (14～122ºF)
	Storage	-40～60ºC (-4～140ºF)
Nominal Operating Temp.Range	25±5ºC (77±5ºF )
Constant-Current Charge	Charging cerreng:0.1C,when charging voitage up to 14.4V, continue to charge 4h
Floating Charge	Charging current less than 0.25C Voltage: 13.60V~ 13.80V @ 25℃ (77ºF)
Effect of temp. to Capacity	40ºC (104ºF)	103%
	25ºC ( 77ºF)	100%
	0ºC ( 32ºF)	86%
Self Discharge	Motorcycle series batteries may be stored for up to 6 months at 25ºC(77ºF) and then a freshening charge is required. For higher temperatures the time interval will be shorter

YTZ14S Battery Structure Diagram

YTZ14S Battery Charging/Discharge Curve

Descharge Characteristics		Self Discharge Characteristic

Advantages of motorcycle battery series

Heat Sealed Case To Cover
Protects against leakage and corrosion and provides for extra stength and durability.

Special Active Material
Compounded to withstand vibration, it prolongs the battery life in storage and provides reliable starting power when needed

Unique Expanded Plate Grid Design
Increased number of plates for maximum starting power and to withstand severe vibration resistance

AGM Separators
Absorbed Glass Matt separators absorb the electrolyte and make the battery spill-proof. The valve regulated design eliminates water loss and the need for refilling

Polypropylene (PP) Cover & Container
Protects against fuel and oil and designed to withstand vibration and impact under extreme conditions

FAQ

What is a YTZ14S battery?

YTZ14S is a 12-Volt 14 Ah 210 Cold Cranking Amps (CCA) Sealed Lead Acid (SLA) battery, Replacement for Yuasa. SLA/AGM spill proof battery has a characteristic of high discharge rate, wide operating temperatures, long service life and deep discharge recover.

How do I know if my motorbike needs a new battery?

Normally, your motorcycle’s standing voltage, which means the battery voltage while the engine is off, should be at around 12.2 to 12.5V. Anything lower than this could mean that your motorcycle battery has gone beyond its charging and depletion cycles and is due for replacement.
