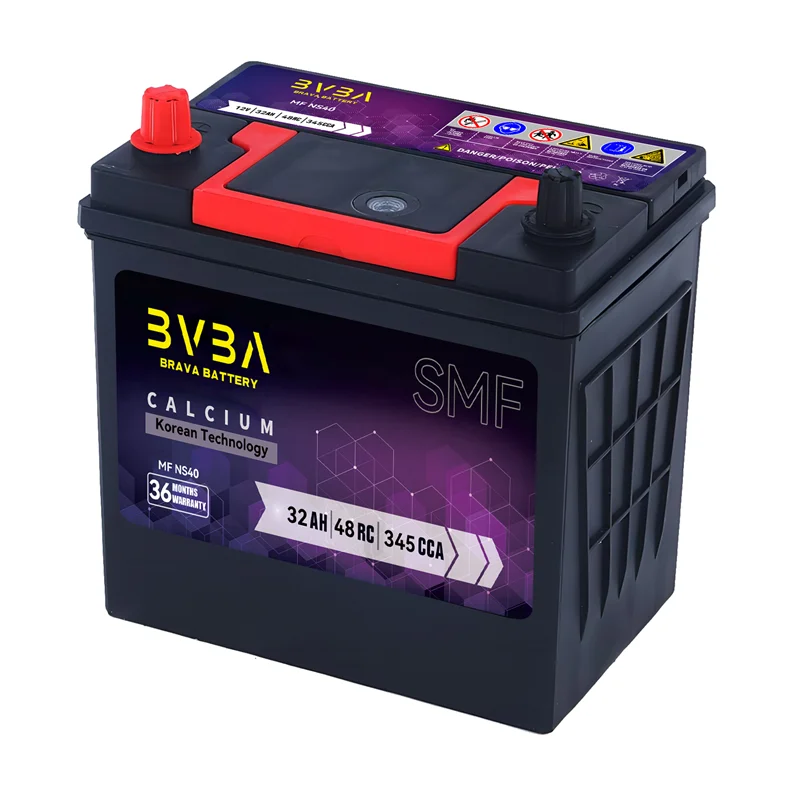

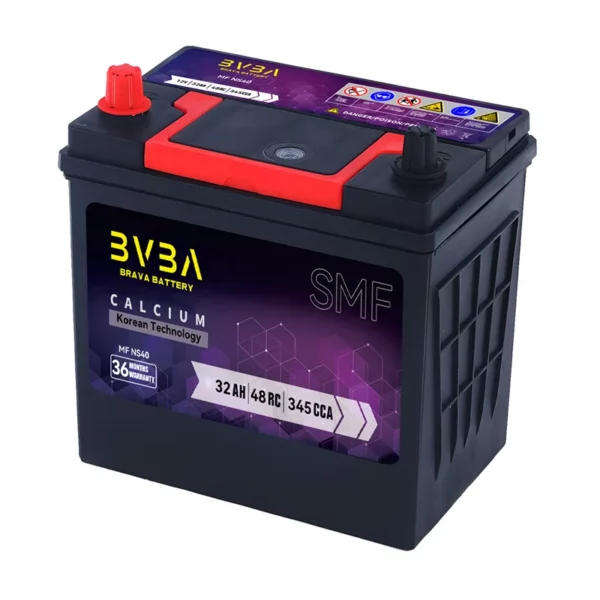

NS40 (36B20R) 12V48AH JIS Standard SMF Battery

Product Description

Model: NS40
BRAVA NS40 (36B20R, 6-QW-48T1R-B) JIS series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under JIS technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Voltage : 12v
Capacity : 48Ah
Size : 195*126*201*221mm
Weight : 9.4kg
Terminal : 3

Tags:

Model

NS40 (36B20R)

Nominal Voltage

12V

Nominal Capacity(20HR)

48Ah

Dimension

Length

195±2mm(7.68inches)

Width

126±2mm(4.96inches)

Container Height

201±2mm(7.91inches)

Total Height(with Terminal)

221±2mm(8.70inches)

Weight With Acid

Approx 9.4Kg(20.7lbs)

Acid

1.280±0.015g/cm (25 C)

Standard Terminal

Cell layout

Hold-Down

Case

Black-Material (PP)

Cover

Black-Material (PP)

Handle

Black-Material (PP)

Rated Capacity

@20 hour rate(1.8A)

48Ah

Reserve Capacity (RC)

54min

Cold Cranking Amps(CCA)

@0 ºF (-18 ºC)

345A

Terminal Type

Positive

Negative

14.7

13.0

Wet Starter SMF Battery JIS Standard Series

Group No.	Old Type	Type	Volt.	C20	C5	RC	CCA(JIS)	Overall Dimensions(mm)	Cell	Terminal	Hold Down	Handles	Wet Weight
(V)	(Ah)	(Ah)	(Min)	(-18℃)	L	W	H	TH	Layout	(Kg)
B20	NS40L	36B20L	12	48	28	47	345	195	126	201	221	0	3	B0	TS1	9.4
NS40	36B20R	12	48	28	47	345	195	126	201	221	1	3	B0	TS1	9.4
NS40L(S)	36B20LS	12	32	28	47	310	195	126	201	221	0	1	B0	TS1	9.4
NS40(S)	36B20RS	12	32	28	47	310	195	126	201	221	1	1	B0	TS1	9.4
NS40ZL	38B20L	12	36	28	54	335	195	126	201	221	0	3	B0	TS1	9.7
NS40Z	38B20R	12	36	28	54	335	195	126	201	221	1	3	B0	TS1	9.7
NS40ZL(S)	38B20LS	12	36	28	54	335	195	126	201	221	0	1	B0	TS1	9.7
NS40Z(S)	38B20RS	12	36	28	54	335	195	126	201	221	1	1	B0	TS1	9.7

Group
No.

Old
Type

Type

Volt.

C20

CCA(JIS)

Overall Dimensions(mm)

Cell

Terminal

Hold
Down

Handles

Wet
Weight

(V)

(Ah)

(Min)

(-18℃)

Layout

(Kg)

B20

NS40L

36B20L

345

195

126

201

221

TS1

9.4

NS40

36B20R

345

195

126

201

221

TS1

9.4

NS40L(S)

36B20LS

310

195

126

201

221

TS1

9.4

NS40(S)

36B20RS

310

195

126

201

221

TS1

9.4

NS40ZL

38B20L

335

195

126

201

221

TS1

9.7

NS40Z

38B20R

335

195

126

201

221

TS1

9.7

NS40ZL(S)

38B20LS

335

195

126

201

221

TS1

9.7

NS40Z(S)

38B20RS

335

195

126

201

221

TS1

9.7

FAQ

1. How to extend the life of a SMF battery?

In order to increase the life of battery, it is necessary to monitor the battery performance constantly. Here are some tips to optimize the battery performance.
1. The SMF battery should be placed in well ventilated area to avoid high temperature environment. With each 10 degree rise in air temperature, the float life reduces to half. If the battery is installed in equipment, it is necessary to isolate it from heat generating components like transformer.
2. In order to prevent deep discharge, it is necessary to set the cut off voltage to 11.5 volts in 12 volt battery and 4.5 in 6 volt battery.
3. It is necessary to prevent no load battery drain. The additional components of the equipment such as sensors, displays and indicators consume power in the no load condition. So if the equipment is not provided with automatic charging, this power loss leads to deep discharge.

4. Boost cum float charging is suitable for SMF battery. If the power failure is frequent, the battery should be charged immediately to acquire full charge before the next power failure.

5. If there is any problem such as low backup time, battery heating, low terminal voltage even after continuous charging develops, the battery should be attended immediately.

6. If the equipment is not using for long time, it should be charged once in every week. If the battery is allowed to charge and discharge frequently, its life can be extended to 3-5 years.

2. What’s the SMF Battery?

Sealed Maintenance Free batteries are widely used where minimal maintenance and space requirements are the main considerations. In UPS systems, it is used because of its maintenance free and eco friendly features. SMF batteries do not require water and acid top up and are totally maintenance free. There is no water loss during the charge- discharge cycle and the battery works on the oxygen recombination principle. SMF battery is also called as Valve Regulated Lead Acid or VRLA battery.
