Hybrid Auxiliary Battery
Modern vehicles with CO2 reduction technologies, high levels of specification, and new electronic driver aids may feature an auxiliary battery alongside the main vehicle starter battery or high voltage system battery on Hybrid and electric vehicles. Auxiliary batteries vary in size and specification dependent on the demands placed on it by the vehicle electrical system and can be used as a safety back-up to support the main battery when required or to provide voltage for specific vehicle systems all of the time.
Electric Vehicle Auxiliary Battery
BRAVA ISS Active Stop-Start and Hybrid Auxiliary batteries are specially designed to satisfy the fuel saving and emission reducing benefits of vehicles fitted with Idle Stop-Start (ISS) or Hybrid systems. The range incorporates innovative design features and advanced raw materials to deliver superior cycling performance, high charge acceptance for rapid recharge in between engine off modes, and the extra power to run on-board electrics whilst the engine is switched off.
A comprehensive selection of EFB and AGM batteries in DIN and JIS footprints are available for use in all Stop-Start vehicles.
Electric vehicles such as the Mitsubishi i-miev feature a conventional 12 Volt auxiliary battery in addition to the high voltage traction battery.
The auxiliary battery is not used by the traction motor but is charged by the traction battery and is used to support all of the electrical systems on the vehicle with the exception of:
- Air conditioning
- Heating system
Select one Battery Option:
Sealed MF

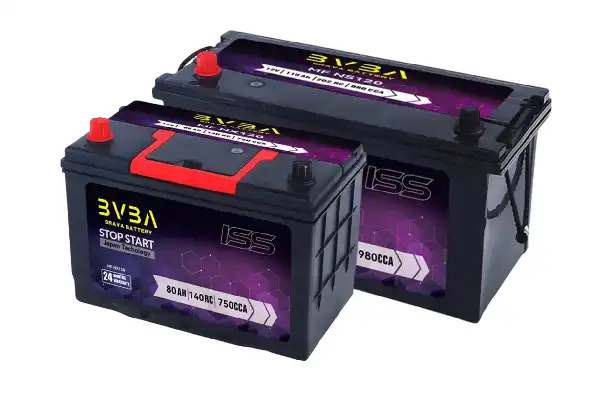

STOP-START
Hybrid Auxiliary
Our Team Of Experts Are Here For You
Brava Dual purpose Batteries Auxiliary Battery Experts.
HOT HYBRID AUXILIARY BATTERIES

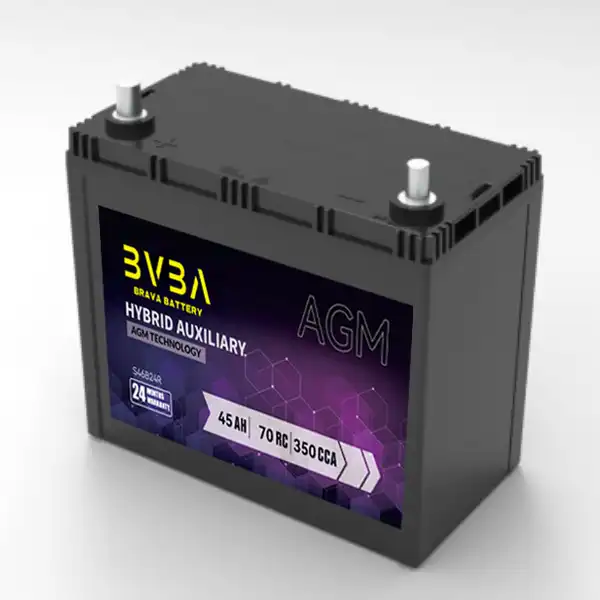

Model: S46B24R
Voltage : 12v
CCA : 325A
Rated Capacity : 45Ah@20hr
Reserve Capacity : 68Min
Size : 238 x 128 x 202 x 227mm
Weight : 13.5kg
Terminal : B
Warranty: 3 Year Warranty

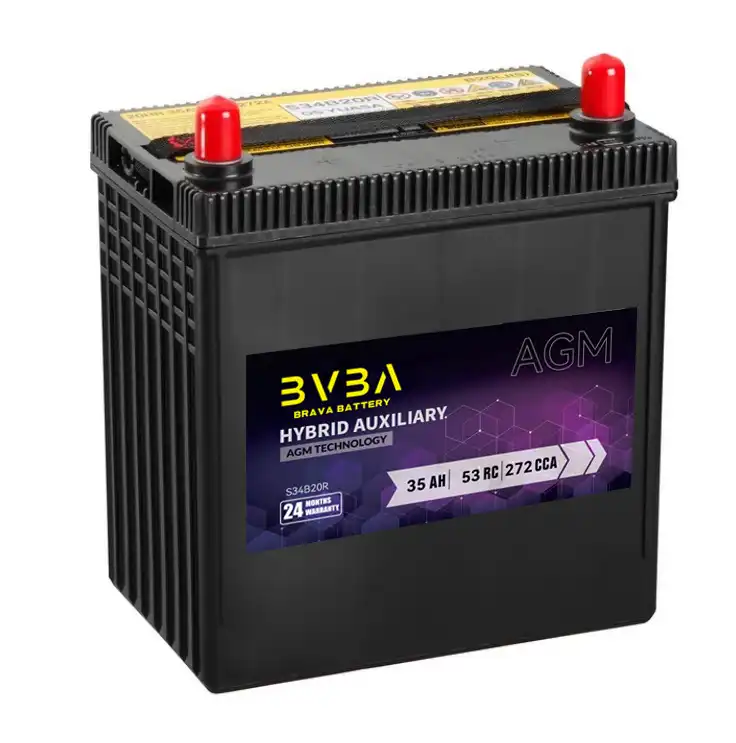

Model: S34B20L
Voltage : 12v
CCA : 270A
Rated Capacity : 35Ah@20hr
Reserve Capacity : 53Min
Size : 197 x 128 x 200 x 227mm
Weight : 12.5kg
Terminal : B
Warranty: 3 Year Warranty
Model: S65B26R
Voltage : 12v
CCA : A760A
Rated Capacity : 75Ah@20hr
Reserve Capacity : 125Min
Size : 257 x 172 x 200 x 220mm
Weight : 17.5kg
Terminal : A
Warranty: 3 Year Warranty
Model: S75B31L
Voltage : 12v
CCA : 510A
Rated Capacity : 80Ah@20hr
Reserve Capacity : 125Min
Size : 304 x 171 x 202 x 227mm
Weight : 20.7kg
Terminal : B
Warranty: 3 Year Warranty

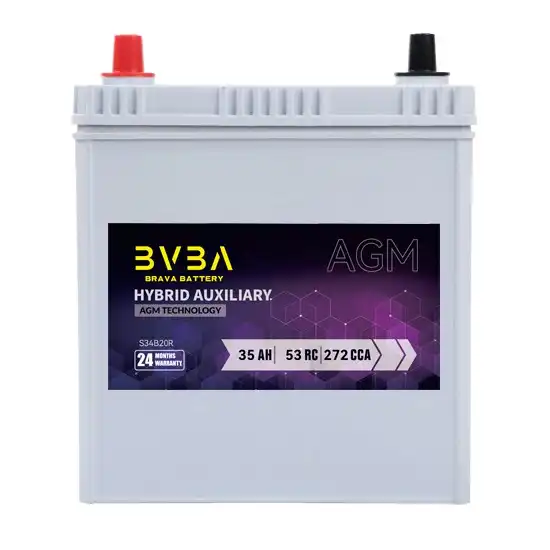

S34B20R

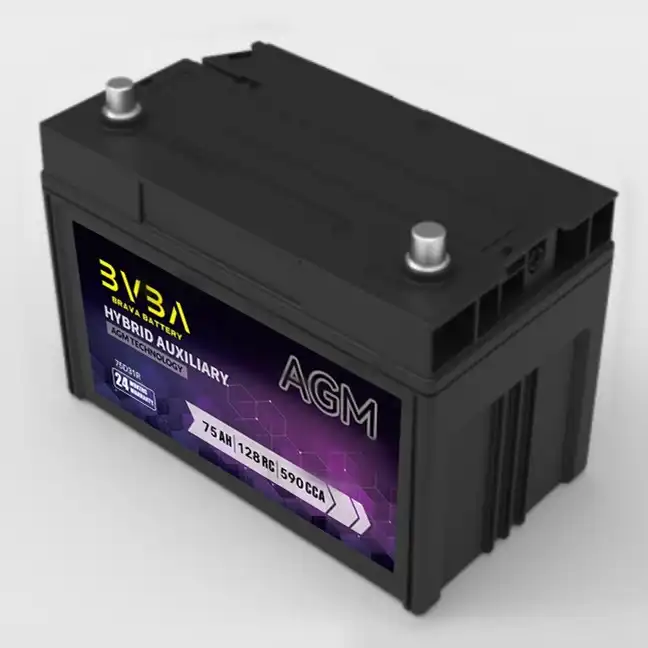

S75D31R

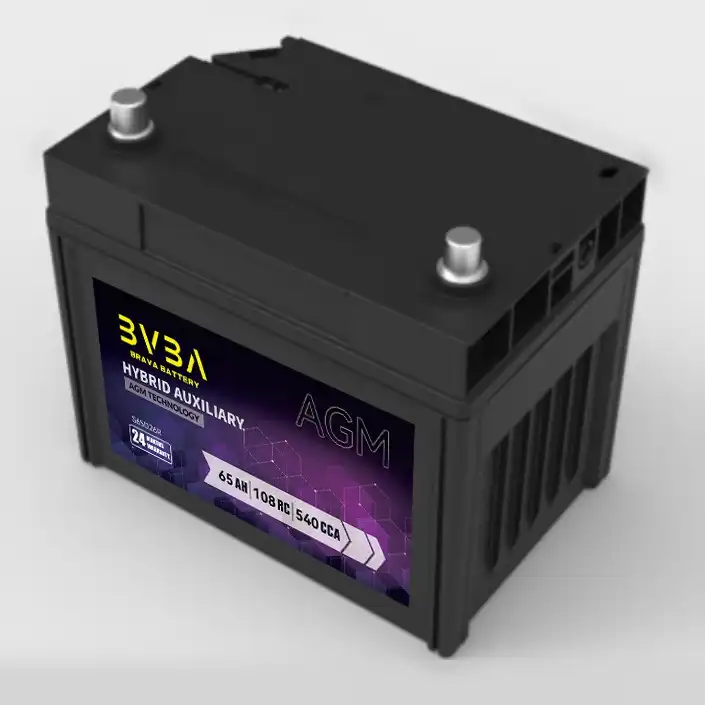

S65D26R

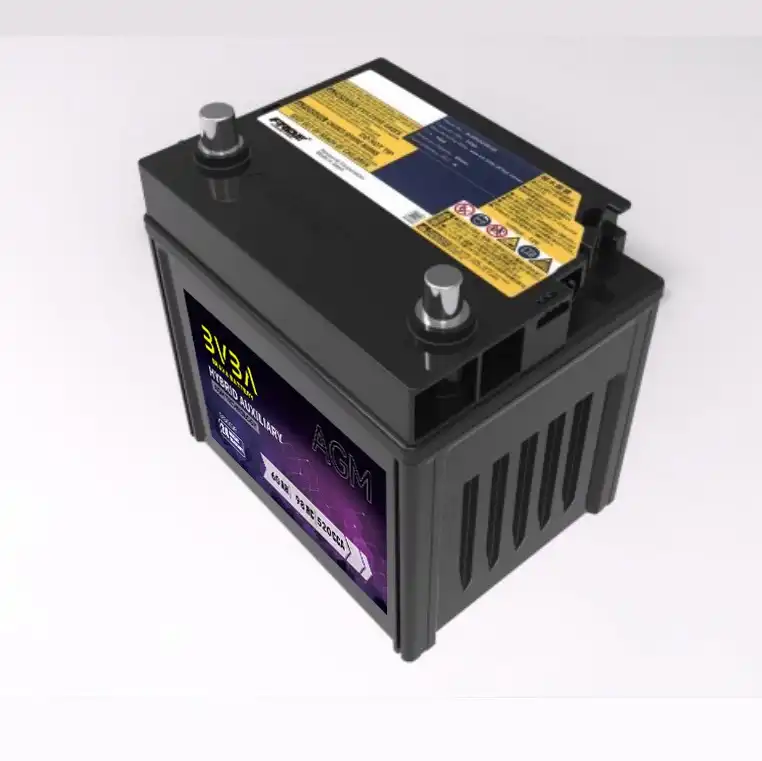

S55D23R
S46B24R

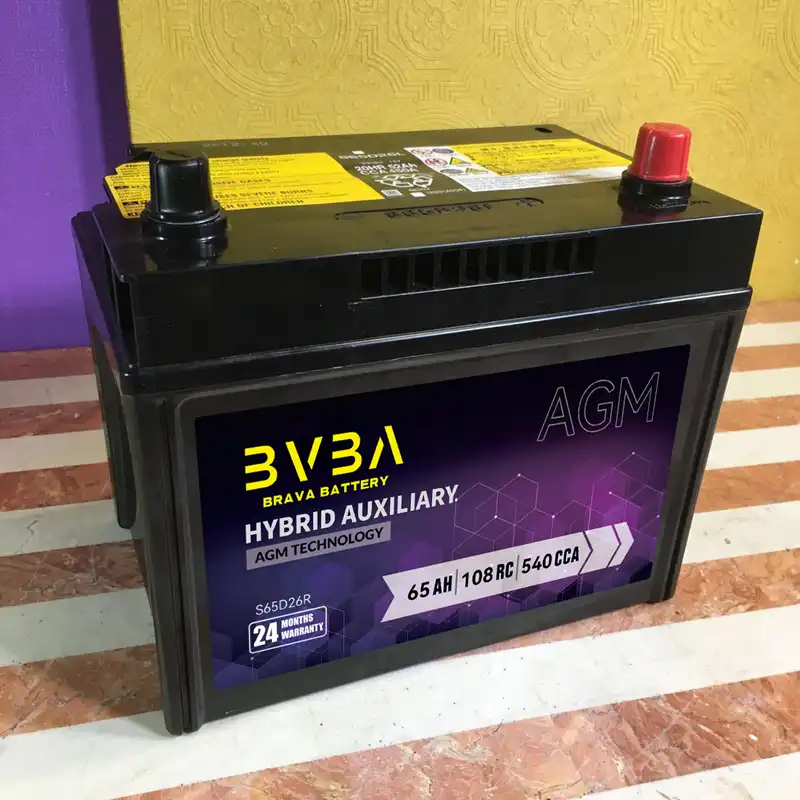

S65D26L
12V Automotive Batteries / JIS / Hybrid Auxiliary Battery (HEV) List
| Model | Rated Voltage (V) | 20hr @1.75V/cell | RC (min) | CCA -18℃ (A) | L+W+H+TH(mm) +0/-2 | Gross Weight (kg) | Cell layout | Terminal | Hold-Down | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S34B20R | 12 | 35 | 53 | 270 | 197 | 128 | 202 | 227 | 12.5 | 1 | 12 | B0 |
| S46B24R | 12 | 45 | 68 | 325 | 238 | 128 | 202 | 227 | 13.5 | 1 | 12 | B0 |
| S50B20L | 12 | 35 | 60 | 272 | 184 | 127 | 200 | 220 | 12 | 0 | B | B0 |
| S55B24L | 12 | 48 | 80 | 325 | 238 | 127 | 200 | 220 | 12 | 0 | B | B0 |
| S55D23R | 12 | 65 | 85 | 550 | 220 | 170 | 225 | 225 | 15.1 | 1 | 12 | B0 |
| S55D23L | 12 | 65 | 85 | 670 | 230 | 172 | 200 | 220 | 16.5 | 0 | A | B0 |
| S65D26L | 12 | 75 | 125 | 400 | 257 | 171 | 227 | 227 | 17.3 | 1 | 12 | B0 |
| S65D26R | 12 | 75 | 125 | 760 | 257 | 172 | 200 | 220 | 17.5 | 1 | A | B0 |
| S75D31L | 12 | 80 | 125 | 510 | 304 | 171 | 227 | 227 | 20.7 | 1 | 12 | B0 |
Our Team Of Experts Are Here For You
Brava Dual purpose Batteries Auxiliary Battery Experts.
Hybrid Vehicle Auxiliary Battery Application
Most Hybrid vehicles such as the Toyota Prius feature a conventional 12 Volt auxiliary battery in addition to the high voltage hybrid system battery.
The 12 Volt battery is not used for engine starting or to power the traction motors but is used to supply power to:
- Accessory systems
- Headlights
- Audio systems
- Computer controls
AUXILIARY BATTERY IN CAR
S34B20R-S55B24R
AUXILIARY BATTERY IN TRUCK
S65D26R-S75D31L
AUXILIARY BATTERY IN CAR
Start-Stop Battery For CAR
AGM50-105, EFB50-105 Series Battery
Start-Stop Battery For Pickup
32B20R-65D26R
Start-Stop Battery For Truck
65D31R-95D31R
FAQ
1. What Is a Hybrid Car Battery?
According to Hybrid Cars, a hybrid car combines the functionality of a gas-powered motor and an electric hybrid battery. It is rechargeable and provides enough power to move a large vehicle.
2. How Hybrid Batteries Work
Hybrid vehicles combine electric car technology with that of traditional cars. A hybrid vehicle utilizes a 12-volt lead-acid battery and gasoline like a traditional vehicle while also pulling energy from an electric battery. The vehicle can switch seamlessly between power sources so the driver isn’t even aware of the transition.
3. 12-Volt Auxiliary Battery Types
Most auxiliary 12-volt systems use an Absorbent Glass Mat (AGM) or a Valve Regulated Lead Acid (VRLA) battery. The auxiliary battery can be installed almost anywhere in the vehicle. Common locations include:- In the trunk
- Under the rear hatch floor
- Under a seat
- In the engine compartment
- Under the floorboard
4. What happens if I don’t replace my auxiliary battery?
If you notice any symptoms of a faulty auxiliary battery, don’t wait to have it inspected. A faulty auxiliary battery can lead to problems with your car’s electrical components and safety features—or they may stop working entirely. These include:- Entertainment system
- GPS
- Audio system
- PDC sensors
- Blind Spot Assist
- Lane Keeping Assist
