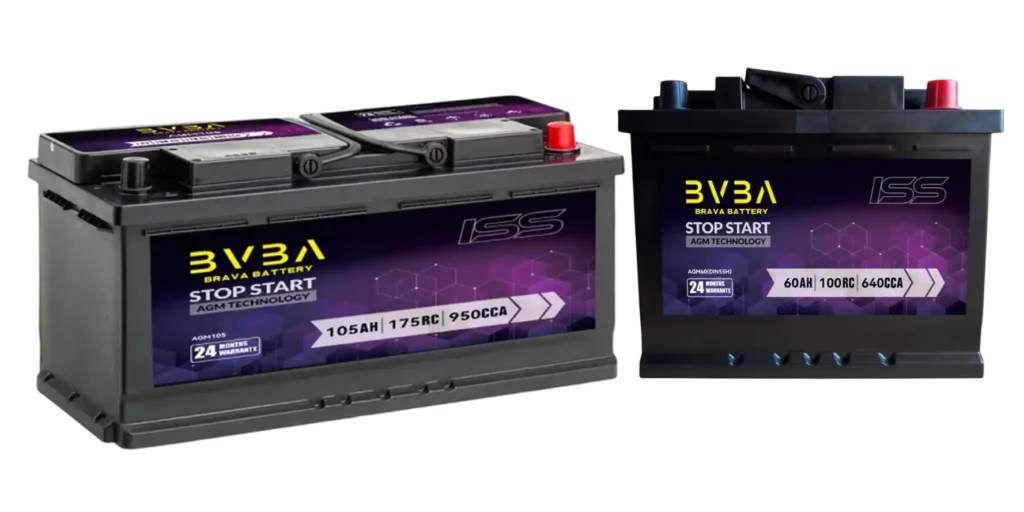

AGM/EFB Start-Stop Battery

Stop-Start Battery, also known as Idle Stop Start (ISS), AGM battery,starting battery,Battery Group Size,Cold Cranking Amps (CCA),Battery Reserve Capacity (RC), Amp Hour and C20 are key performance.High performance and cycle stability, especially for vehicles with a high energy demand and frequent discharge cycles.

start-stop battery

EFB Stop-Start Battery Benefit

High Performance EFB Battery uses cutting edge technology that provides constant optimum power even for short trips and stop-and-go traffic, up to 2x longer lifetime, flushed tops for minimized risk of acid leakage.

  1. High cranking amperage
  2. Extreme charge and discharge performance
  3. Low self-discharge
  4. Unique design to give very good vibration resistance
  5. Excellent DCA balanced with reasonable water consumption

Select one Battery Option:

smf battery

Sealed MF

AGM60-90 AGM BATTERY

STOP-START

hybrid auxiliary battery

Hybrid Auxiliary

Our Team Of Experts Are Here For You

Brava Dual purpose Batteries Auxiliary Battery Experts.

HOT Start-Stop BATTERIES

H5-AGM60

Model: H5/AGM-60

Voltage : 12v
CCA :
600A
Rated Capacity : 60Ah@20hr
Reserve Capacity : 100Min
Size : 242 x 175 x 190 x 190mm
Weight : 19.0kg
Terminal : M8
Warranty: 3 Year Warranty

AGM70 CAR BATTERY

Model: H6/AGM-70

Voltage : 12v
CCA : 760A
Rated Capacity : 70Ah@20hr
Reserve Capacity : 120Min
Size : 278 x 175 x 190 x 190mm
Weight : 21.1kg
Terminal : M8
Warranty: 3 Year Warranty

AGM80(DIN77H) CAR BATTERY

Model: H7/AGM-80

Voltage : 12v
CCA :
850A
Rated Capacity : 80Ah@20hr
Reserve Capacity : 140Min
Size : 315  x 175 x 190 x 190mm
Weight : 24.5kg
Terminal : M8
Warranty: 3 Year Warranty

AGM90(DIN88) CAR BATTERY

Model: H8/AGM-90

Voltage : 12v
CCA :
900A
Rated Capacity : 90Ah@20hr
Reserve Capacity : 160Min
Size : 353  x 175 x 190 x 190mm
Weight : 27.0kg
Terminal : M8
Warranty: 3 Year Warranty

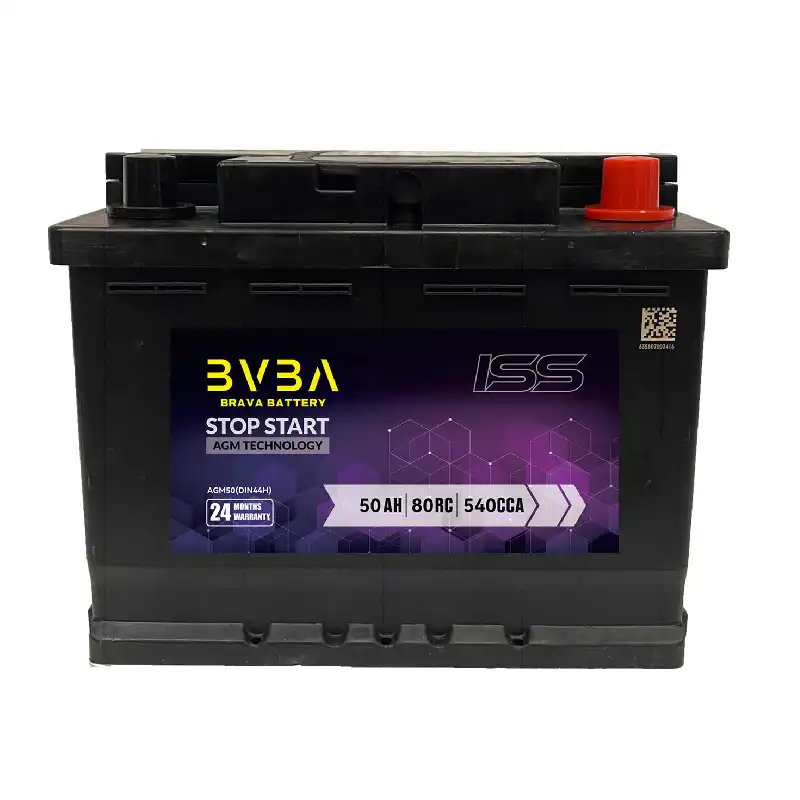

H4-AGM50

H4/AGM-50

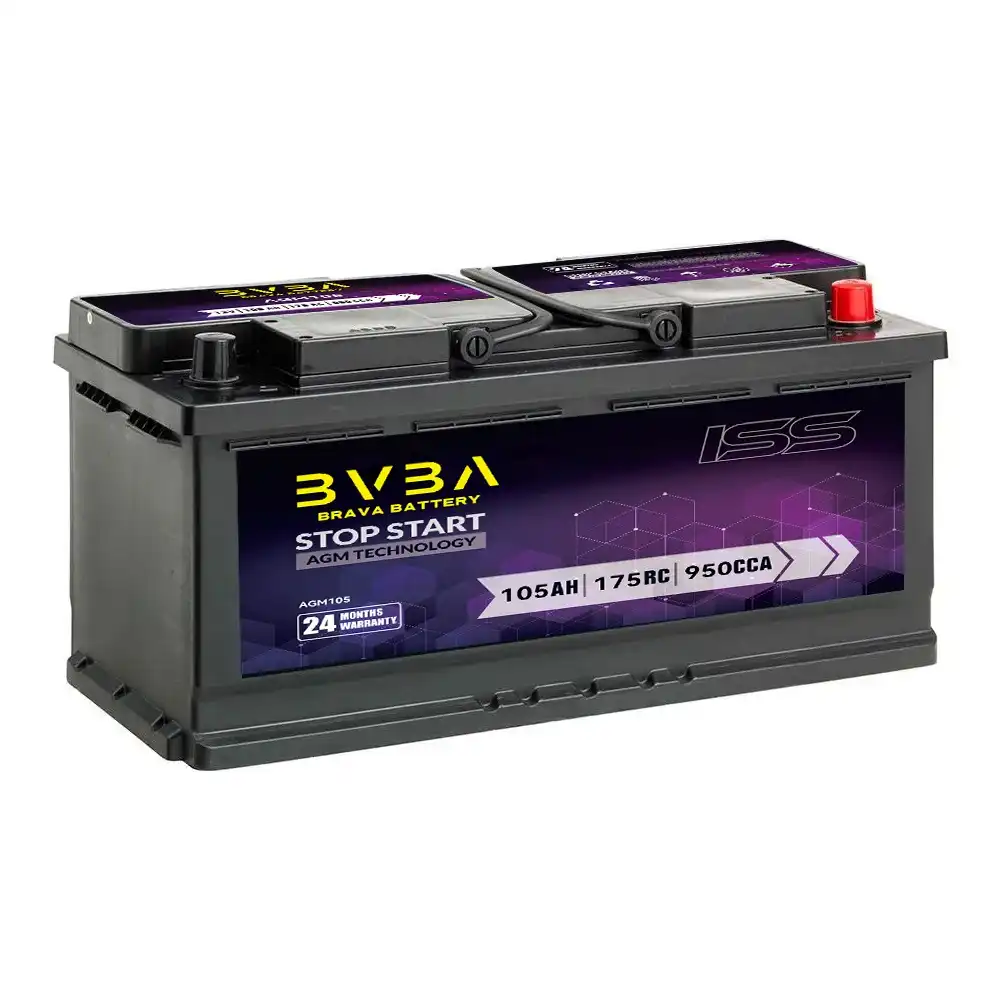

H9/AGM-105

EFB60 H5-L2-60 100 640 start-stop battery

EFB60 L2

EFB70 H6 L3-70 120 700 start-stop battery

EFB70 L3

EFB80 L4 80 140 750 start-stop battery

EFB80 L4

AGM Stop-Start Battery Models

ModelVoltage(V)CCA(A)Capacity(Ah)RC(Min)Dimensions (L,W,H,Total Height*mm)Weight(kg)Terminal
H4/AGM-50125405080207*175*190*19017.5M88.5
H5/AGM-601260060100242*175*190*19019.0M88.0
H6/AGM-701276070120278*175*190*19021.1M87.5
H7/AGM-801285080140315*175*190*19024.5M86.6
H8/AGM-901290090160353*175*190*19027M86.5
H9/AGM-10512950105175400*175*190*19029.6M86.0

12V EFB Start-Stop Battery Models (DIN series)

GroupModelCapacity(Ah)CCA(A)Dimensions (L,W,H,Total,Height*mm)LayoutTerminalHold Down
L1MF5501050500207*174*190*0AB13
LB1MF5443044480207*174*175*0AB13
L2MF5601060560242*174*190*0AB13
L2MF5603060640242*174*190*0AB13
LB3MF5651065650277*174*175*0AB13
LB3MF5653065650277*174*175*0AB13
L3MF5701070650277*174*190*0AB13
L3MF5703070760277*174*190*0AB13
LB4MF5751075730315*174*175*0AB13
LB4MF5753075730315*174*175*0AB13
L4MF5801080730315*174*190*0AB13
L4MF5803080800315*174*190*0AB13
L5MF5951095900354*174*190*0AB13
L6MF61010110950393*174*190*0AB13

12V EFB Batteries/Start-stop Battery/ JIS Models

GroupModelCapacity(Ah)CCA(A)Dimensions (L,W,H,Total,Height*mm)LayoutTerminal
B19M42(55B19L)40370370*184*127*2000A(B)
B19M42R(55B19R)40370370*184*127*2001A(B)
B1960B19L(M42)40420420*184*127*2000A(B)
B24N55(70B24L)45460460*238*127*2000A(B)
B2480B24L(N55)50500500*238*127*2000A(B)
D23Q85(90D23L)65500500*230*172*2000A
D23Q85R(90D23R)65500500*230*172*2001A
D23105D23L(Q90)70610610*230*172*2000A
D26S95(100D26L)68630630*257*172*2000A
D26S100(125D26L)75650650*257*172*2000A
D31T110(115D31L)80800800*302*172*2000A
D31T115(145D31L)90820820*302*172*2000A

Our Team Of Experts Are Here For You

Brava Dual purpose Batteries Auxiliary Battery Experts.

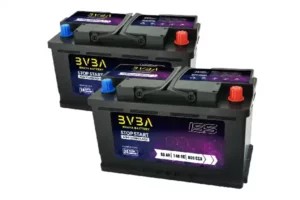

agm start stop battery

Advantages of Auto Start-stop technology

  • 200,000+ engine starts
  • Countermeasures against acid stratification
  • High-energy micro-cycle design for Start-Stop engines and intense urban driving schedules
  • Ideal for extreme temperature climates
  • Sealed manifold vents for >45⁰ spill resistance
  • OEM replacement part in a wide range of models
  • High-energy replacement for EFB and AGM batteries
  • Sealed flat top maintenance-free design
  • Enhanced Safety with built-in flame arrestor
  • Built-in suitcase-style handles
batteries-for-trucks

BATTERY FOR TRUCK

N70-N220

AUXILIARY BATTERY IN TRUCK

S65D26R-S75D31L
AUXILIARY BATTERY IN CAR

AUXILIARY BATTERY IN CAR

car

Start-Stop Battery For CAR

AGM50-105, EFB50-105 Series Battery
pickup trucks

Start-Stop Battery For Pickup

32B20R-65D26R
truck

Start-Stop Battery For Truck

65D31R-245H52

FAQ

1. What is a Stop Start battery?

Read More

2. What is the difference between a Stop Start battery and a normal battery?

Read More

3. What do the AGM and EFB battery mean?

Read More

4. What happens when a conventional car battery is installed in a start-stop vehicle?

Read More
