BMS PCB 4S 200A with BT

5 BMS pcb for lithium battery pack

Table of Contents





BMS PCB 4S
BMS PCB 4S
BMS PCB 4S1P
BMS PCB 4S1P

Feature:

Name: Lithium battery balancing board
Scope of application: 3.7V Nominal voltage, 4.2V full voltage lithium battery (including 18650, 26650, polymer lithium battery)
Size: 20 x 30 x 2.4mm
Adaptable voltage: 16.8V
Balanced current:100mA, suitable for 2000-4000 mah battery

Note: this product cannot be used instead of lithium battery protection board (not overcharge protection and discharge protection function)

Package included:

5 x Lithium battery balancing board

BMS PCB 6S 15A

BMS PCB 6S 15A

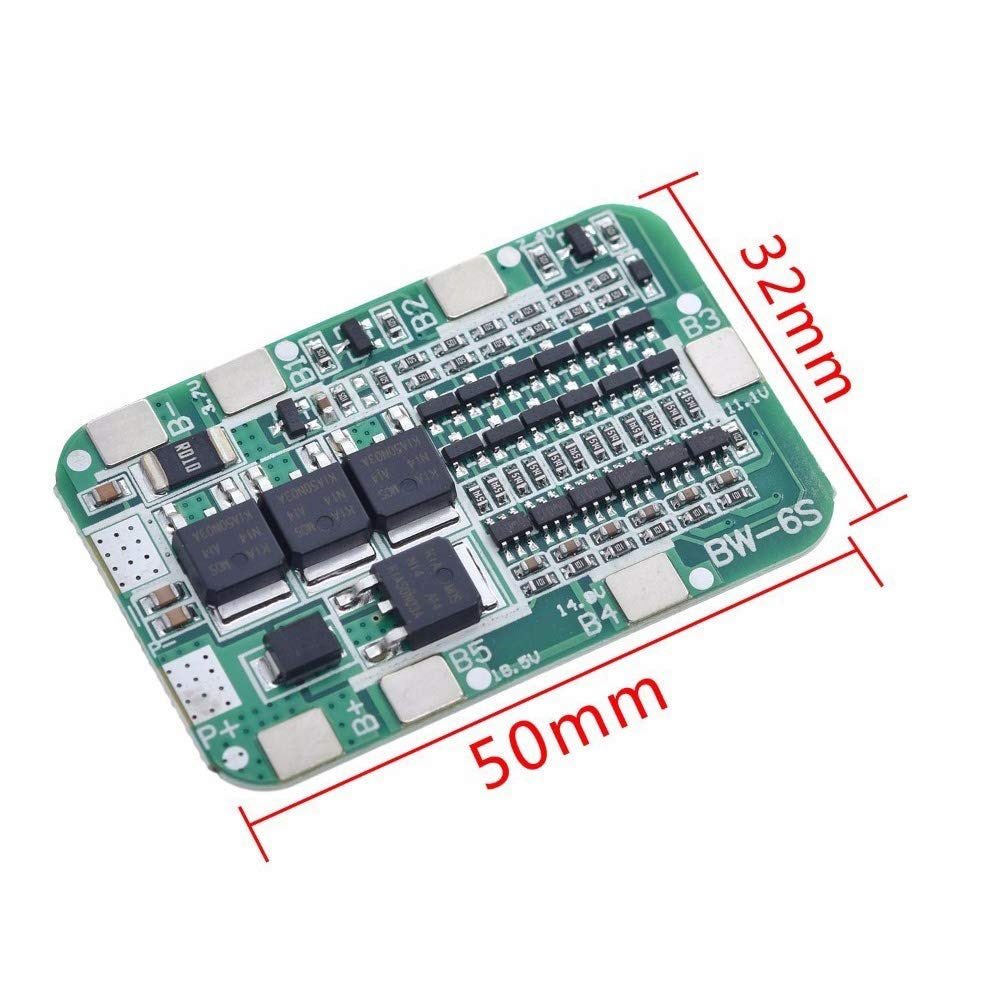

6S 25.2V 15A 18650 Charger PCB BMS Protection Board, Li-ion Lithium Battery Charger Lipo Cell Module



BMS PCB 4S 100A
BMS PCB 4S 100A



4S 100A BMS,Rechargeable 3.2V Lifepo4 Battery Pack BMS PCB L(4S 100A)

  • 1. When u Buy it ,pls Notice this BMS is just application for Rechargeable Lifepo4 Battery
  • 2.4S 100A BMS size is 196*100*38mm.Weight is 0.55kg
  • 3.When u buy 4S BMS ,u will receive 1pcs BMS,1pcs 4s Wire Cable
  • 4.BMS only Hold the working Current 100a or Lower than 100A.Pls remeber it .if ur current is big than 100a ,It will burn out
BMS PCB 4S 200A with BT
BMS PCB 4S 200A with BT
BMS PCB 4S 200A with BT-2
BMS PCB 4S 200A with BT-2

Smart bms 3S 4S 100A 120A 150A 200A Lithium& Lion Battery PCB with Uart Heating Function & Series Connection

Protection function description

Overcharge protection:When the battery is under the charging state, the voltage keeps going up. When the protection board detects that the voltage of any cell is higher than the overcharge protection value, the protection board will start timing immediately. When the time reaches the overcharge protection delay, the protection board will turn off the charging MOS tube, at that time, it cannot be charged.
Overcharge protection recovery: After the overvoltage protection appears on the protection board, the battery voltage will going down under the static or discharge state of the battery. When the protection board detects that each voltage is lower than the recovery voltage of the overcharge protection, the protection board will output a signal and turn on the charging MOS tube to charge.
Over-discharge protection: When the battery is under the discharge state, the voltage keeps going down. When the protection board detects that the voltage of any cell is lower than the overcharge protection value, the protection board will start timing immediately. When the time reaches the over discharge protection delay, the output signal of the protection board will turn off the discharge MOS tube, the load lock circuit will work, but, it cannot discharge at this time.
Over discharge protection recovery:After the over discharge protection appears on the protection board, the battery voltage will going up under the static or discharge state of the battery. When the protection board detects that each voltage is higher than the recovery voltage of the over discharge protection. At this time, disconnect the load or charge, the protection board will output a signal and turn on the charging MOS tube to charge.

Overcurrent protection:When the battery is under the static or discharge state, the current suddenly increases. When the protection board detects that the current reaches the overcurrent protection value, the protection board will start timing at that time. When the current duration in the circuit reaches the overcurrent protection delay time, the output signal of the protection board will turn off the discharge MOS tube, and the load lock circuit will work. At this time, the discharge cannot be conducted.
Overcurrent protection recovery: After the discharge overcurrent protection appears on the protection board, the discharge MOS tube is turned off, and the current in the loop becomes 0. At this time, the load is disconnected or charged, the output signal of the protection board will turn on the discharge MOS tube to discharge.

BMS PCB 4S 60
BMS PCB 4S 60

LiFePO4 BMS Automobile Start 4s 60A Pulse 500A-800A 5seconds

PCM Specifications  For 12.8V (4S) LiFePO4 Battery Packs
Model: LWS-10S200A-493 (4S) for car start-up battery pack
No Test   item Criterion
1 Voltage Charging voltage DC:14.4V  CC/CV
Balance voltage for single cell 3.6±0.025V
2 Current Balance current for single cell 36±5mA
Current consumption -sigle cell ≤50μA
Maximal continuous charge/discharge
current for car start
60A
Pulse current 500A (5 seconds)
3 Over charge Protection Over charge detection voltage for single cell 3.85±0.025V
Over charge detection delay time 500mS-1500mS
Over charge release voltage for single cell 3.65±0.005V
4 Over discharge protection Over discharge detection voltage for single cell 2.3±0.0625V
Over discharge detection delay time 500mS-1500mS
Over discharge release voltage for single cell 2.5±0.075V
5 Over current protection Over current detection voltage 0.1±0.025V
Over current detection current /
Detection delay time /
Release condition /
6 Short protection Short circuit current /
protection delay time /
Release condition /
7 Resistance Protection  circuitry(MOSFET) ≤50mΩ
8 Temperature protection Charging and discharge Temperature protection 90±5ºC
Charging and discharge Temperature Release 65±12.5ºC
9 Temperature Operating Temperature Range -20~+60ºC
Storage Temperature Range -20~+85ºC
Temperature switch 90ºC
