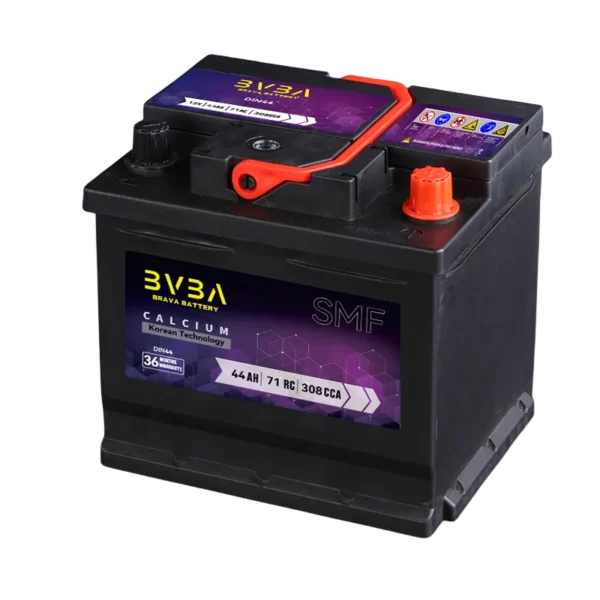

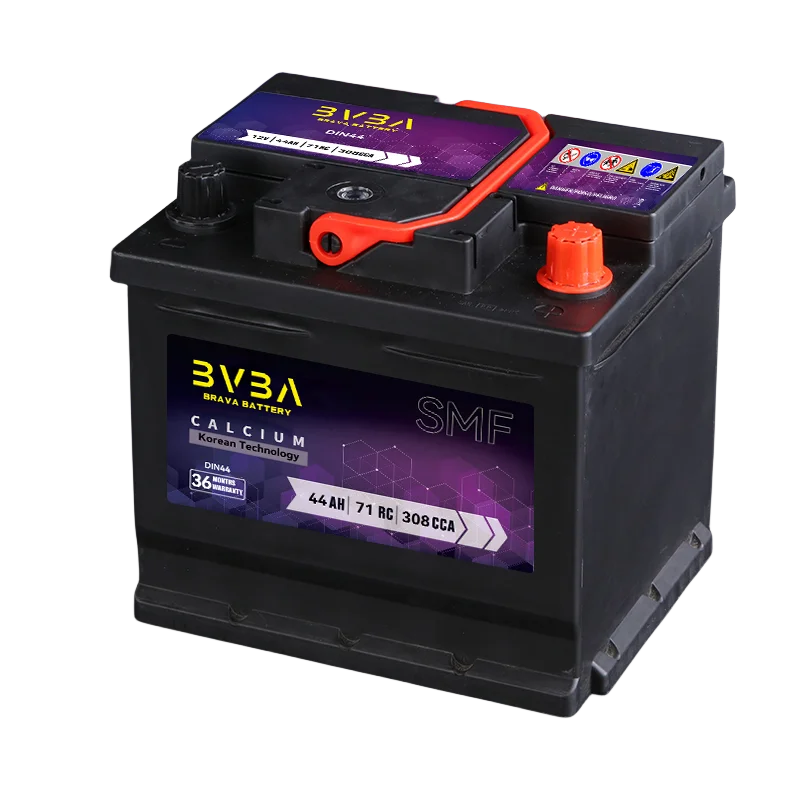

DIN44 54434 12V44AH DIN SMF CAR Battery

Product Description

Model: DIN44
BRAVA DIN44 (54434) DIN series flooded maintenances-free car battery has very good low temperature starting ability,super long shelf life and maintenance free under normal situation.Those batteries are manufactured under DIN technology standard,less electrolyte is consumed,good anti-vibration capacity.It’s good used for car, tractor,mine-truck and the starting,lighting for the construction engineer vehicles,etc.

Voltage : 12v
Capacity : 44Ah
Size : 207*175*190*190mm
Weight : 12.2kg
Terminal : 1

Tags:


Share This Page

DIN44 Physical Specification (mm)

Model DIN44 (54434)
Nominal Voltage 12V
Nominal Capacity(20HR) 44Ah
Dimension Length 207±2mm(8.15inches)
Width 175±2mm(6.89inches)
Container Height 190±2mm(7.48inches)
Total Height(with Terminal) 190±2mm(7.48inches)
Weight With Acid Approx 12.2Kg(26.9lbs)
Acid 1.280±0.015g/cm (25ºC)
Standard Terminal 1
Cell layout 0
Hold-Down B13
Case Black-Material (PP)
Cover Black-Material (PP)
Handle Black-Material (PP)

DIN44 Electrical Specification

Rated Capacity @20 hour rate(2.75A) 44Ah
Reserve Capacity (RC) 71min
Cold Cranking Amps(CCA) @0 ºF (-18 ºC) 308A(EN)

Standard Terminal (mm)

Terminal Type D
Positive Negative
1 19.5 17.9
DIN44 54434 DIN SMF Battery Layout
DIN44 54434 DIN SMF Battery Layout
DIN44 54434 DIN SMF Battery Discharge
DIN44 54434 DIN SMF Battery Discharge

12v 44ah-60ah-100ah DIN Series Models of SMF CAR Batteries

Series Model magic eye Rated Voltage (V) 20hr

@1.75V/cell

RC
(min)
CCA
-18℃ (A)
L(mm)
±2
W(mm)
±2
H(mm)
±2
TH(mm)
±2
Gross Weight (kg) Cell layout Terminal Hold-Down Handle
L1 54434 NO 12 44 71 308 207+0-2 175+0-2 190+0-3 190+0-3 12.2 0 1 B13 TS2
L1 55025 YES 12 49 77 450 207+0-2 175+0-2 190+0-3 190+0-3 12.8 0 1 B13 TS2
L1 55025 NO 12 49 77 450 207+0-2 175+0-2 190+0-3 190+0-3 12.8 0 1 B13 TS2
L2 54049 YES 12 40 61 330 242+0-2 175+0-2 190+0-3 190+0-3 12.9 0 1 B13 TS2
L2 55530/55559/55573 YES 12 55 88 500 242+0-2 175+0-2 190+0-3 190+0-3 14.5 0 1 B13 TS2
L2 55530/55559/55573 NO 12 55 88 500 242+0-2 175+0-2 190+0-3 190+0-3 14.6 0 1 B13 TS2
L2 55565 NO 12 55 88 500 242+0-2 175+0-2 190+0-3 190+0-3 14.6 1 1 B13 TS2
L2 56219 YES 12 60 98 550 242+0-2 175+0-2 190+0-3 190+0-3 15.1 0 1 B13 TS2
L2 56219 NO 12 60 98 550 242+0-2 175+0-2 190+0-3 190+0-3 15.1 0 1 B13 TS2
L2 56221 NO 12 60 98 550 242+0-2 175+0-2 190+0-3 190+0-3 15.1 1 1 B13 TS2
L3 55453 YES 12 54 87 470 278+0-2 175+0-2 190+0-3 190+0-3 15.5 0 1 B13 TS6
L3 56645 YES 12 66 110 560 278+0-2 175+0-2 190+0-3 190+0-3 16.6 0 1 B13 TS6
L3 57028 YES 12 70 122 620 278+0-2 175+0-2 190+0-3 190+0-3 17.2 0 1 B13 TS6
L3 57220 NO 12 72 122 620 278+0-2 175+0-2 190+0-3 190+0-3 17.2 0 1 B13 TS6
L3 57219 NO 12 72 122 620 278+0-2 175+0-2 190+0-3 190+0-3 17.2 1 1 B13 TS6
L3 57545 NO 12 75 128 640 278+0-2 175+0-2 190+0-3 190+0-3 17.7 0 1 B13 TS6
L4 55527 YES 12 54 87 440 314 174 190 190 16.8 0 1 B13 TS6
L4 58043 YES 12 80 138 650 314 174 190 190 19.7 0 1 B13 TS6
L4 58043 NO 12 80 138 650 314 174 190 190 19.7 0 1 B13 TS6
L5 56019 YES 12 60 98 460 351 174 188 188 18.7 0 1 B13 TS6
L5 57019 YES 12 70 118 520 351 174 188 188 19.9 0 1 B13 TS6
L5 58827 YES 12 88 154 690 351 174 188 188 22.0 0 1 B13 TS6
L5 58827 NO 12 88 154 690 351 174 188 188 22.0 0 1 B13 TS6
L5 60038 YES 12 98 175 770 351 174 188 188 23.1 0 1 B13 TS6
L5 60038 NO 12 98 175 770 351 174 188 188 23.1 0 1 B13 TS6
L5 60044 NO 12 100 179 810 351 174 188 188 23.5 0 1 B13 TS6
L6 61042 NO 12 110 201 850 394 175+0-2 190+0-3 190+0-3 25.5 0 1 B13 TS6
LB1 54045 YES 12 40 61 380 206 174 173 173 11.0 0 1 B13 TS2
LB1 54045 NO 12 40 61 380 206 174 173 173 11.0 0 1 B13 TS2
LB1 54465 NO 12 44 68 410 206 174 173 173 11.6 0 1 B13 TS2
LB1 54466 NO 12 44 68 410 206 174 173 173 11.6 1 1 B13 TS2
LB2 55519 YES 12 55 88 520 242+0-2 175+0-2 175+0-4 175+0-4 13.7 0 1 B13 TS2
LB2 55519 NO 12 55 88 520 242+0-2 175+0-2 175+0-4 175+0-4 13.7 0 1 B13 TS2
LB3 54015 YES 12 40 61 340 276 174 174 174 13.5 0 1 B13 TS1
LB3 55415 NO 12 54 87 460 276 174 174 174 15.1 0 1 B13 TS1
LB3 56067 NO 12 60 98 520 276 174 174 174 15.4 0 1 B13 TS1
LB3 56420 NO 12 65 108 570 276 174 174 174 16.0 0 1 B13 TS1
LB3 57113 NO 12 68 114 600 276 174 174 174 16.4 0 1 B13 TS1
LB4 57539 YES 12 75 128 630 314 174 174 174 18.4 0 1 B13 TS6
LB4 57539 NO 12 75 128 630 314 174 174 174 18.4 0 1 B13 TS6
LB4 58211 YES 12 78 135 650 314 174 174 174 19.0 0 1 B13 TS6
LB5 57215 YES 12 72 122 550 351 174 173 173 19.2 0 1 B13 TS6
LB5 58015 YES 12 80 138 650 351 174 173 173 20.2 0 1 B13 TS6
LB5 58515 YES 12 85 148 670 351 174 173 173 20.6 0 1 B13 TS6

FAQ

1. How to extend the life of a SMF battery?

In order to increase the life of battery, it is necessary to monitor the battery performance constantly. Here are some tips to optimize the battery performance.
1. The SMF battery should be placed in well ventilated area to avoid high temperature environment. With each 10 degree rise in air temperature, the float life reduces to half. If the battery is installed in equipment, it is necessary to isolate it from heat generating components like transformer.
2. In order to prevent deep discharge, it is necessary to set the cut off voltage to 11.5 volts in 12 volt battery and 4.5 in 6 volt battery.
3. It is necessary to prevent no load battery drain. The additional components of the equipment such as sensors, displays and indicators consume power in the no load condition. So if the equipment is not provided with automatic charging, this power loss leads to deep discharge.4. Boost cum float charging is suitable for SMF battery. If the power failure is frequent, the battery should be charged immediately to acquire full charge before the next power failure.

5. If there is any problem such as low backup time, battery heating, low terminal voltage even after continuous charging develops, the battery should be attended immediately.

6. If the equipment is not using for long time, it should be charged once in every week. If the battery is allowed to charge and discharge frequently, its life can be extended to 3-5 years.

2. What’s the SMF Battery?

Sealed Maintenance Free batteries are widely used where minimal maintenance and space requirements are the main considerations. In UPS systems, it is used because of its maintenance free and eco friendly features. SMF batteries do not require water and acid top up and are totally maintenance free. There is no water loss during the charge- discharge cycle and the battery works on the oxygen recombination principle. SMF battery is also called as Valve Regulated Lead Acid or VRLA battery.

3. Best Price Manufacturer for DIN44 SMF Battery?

Yes! BravaBattery.
